Product data

modelJC1613
Feed opening1600×1300 mm
Max feed size1110 mm
CSS Range590-900 mm
Capacity(by hour)665-970 tph
Motor power280 KW

*Note: The processing capacity of the JC1613 jaw crusher may vary with different materials and feeding sizes.

Request a quoteMobiles tracked brochure

Our range jaw crushers

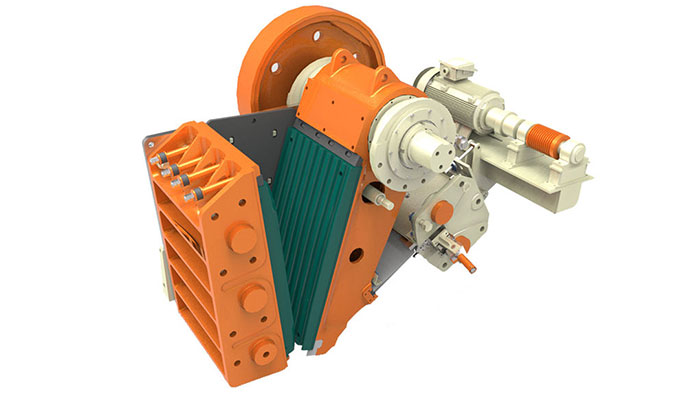

JC96 jaw crusher

JC96 jaw crusherJC96

Nominal capacity125-310 tph

Max. feed size480 mm

Motor power90 KW

Live Chat
JC160 jaw crusher

JC160 jaw crusherJC160

Nominal capacity550-930 tph

Max. feed size1020 mm

Motor power250 KW

Live Chat

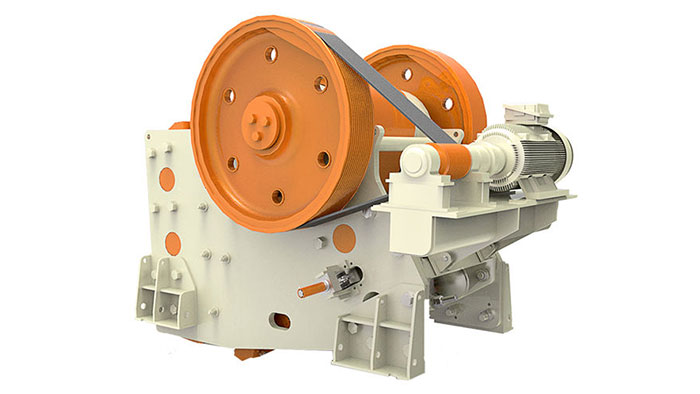

JC125 jaw crusher

JC125 jaw crusherJC125

Nominal capacity325-620 tph

Max. feed size810 mm

Motor power160 KW

Live Chat

Case stories

600-800TPH Stone Production Line of Lutong Company

Equipment configuration: PCZ1620 heavy hammer crusher ZG2028 vibrating feeder 3YKZ2070 vibrating screen*2 sets. Performance feature: low investment quick interest gain high automation.

Automatic Stone Production Line in Guizhou

Seen from the picture the monitoring system can clearly monitor every corner of the stone production line. It is part of our whole automatic stone production line.

1000TPH Stone Production Line in Yibin

In production base we find there are some relative technicians install dust cover to reduce the spillage of dust.

Additional product information

JC1613 Jaw Crusher

Specifications:

  • Feed Opening Size (mm): 1600×1300
  • Maximum Feed Size (mm): 1110
  • Discharge Opening Sizes (mm)/Capacity (t/h):
    • 590: 665
    • 665: 745
    • 745: 820
    • 820: 900
    • 900: 970
  • Motor Power (kw): 280

Product Features:

  • Compact Design: The JC1613 jaw crusher features a compact structure suitable for environments with limited space.
  • Efficient Crushing: Rationally designed crushing cavity improves material crushing efficiency.
  • Easy Maintenance: Quick and convenient replacement of wear parts, reducing downtime.
  • Adjustable Discharge Opening: Easy adjustment of the discharge opening according to actual needs.
  • Durability: High-strength materials ensure long-term stable operation.
