Product data

modelJC2000M
Feed opening2000 x 1200 mm
Max feed size1100 mm
CSS Range150 - 300 mm
Capacity(by hour)1200 - 1300 tph
Motor power315 kW
Weight85,000 kg
Rotation speed of eccentric shaft220 rpm

*Note: The processing capacity of the JC2000M jaw crusher may vary with different materials and feeding sizes.

Request a quoteMobiles tracked brochure

Our range jaw crushers

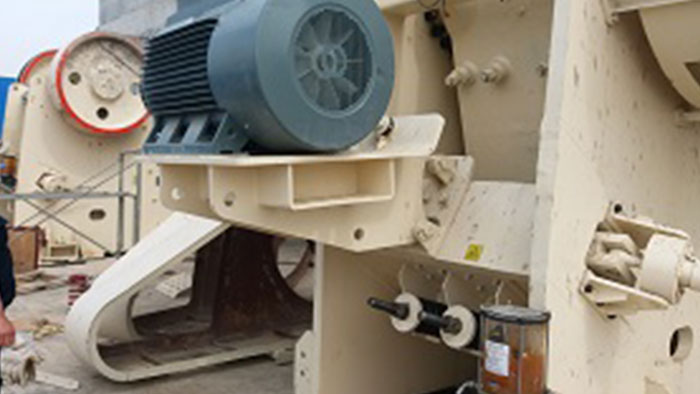

JC0850 jaw crusher

JC0850 jaw crusherJC0850

Nominal capacity760 - 1590 tph

Max. feed size450 mm

Motor power75 kW

Live Chat
JC1200M jaw crusher

JC1200M jaw crusherJC1200M

Nominal capacity220 - 720 tph

Max. feed size850 mm

Motor power160 kW

Live Chat
JC100 jaw crusher

JC100 jaw crusherJC100

Nominal capacity150 - 370 tph

Max. feed size640 mm

Motor power110 KW

Live Chat

Case stories

3000TPH Gravel Aggregate Production Line of Dingli

Constructed according to national standard the whole production linemakes full use of local rich mining resource. The process adopts transfer silo layout and suitable belt conveyor system. Such production model can be widely promoted acros

3000TPH gravel production line

The project is under EPC general contract construction of Zhongyu and Denli, and tailor-made production line scheme for customers.

600TPH Gravel Production Line in Guangan City

Upon this situation we upgraded our design with the process of first crushing desilt crushing shaping crushing and then sand making. And we can adjust discharge size with market demand with low soil and average finished material.

Additional product information

JC2000M Jaw Crusher: Super High-Throughput Crushing for Industrial Use

Product Overview

The JC2000M jaw crusher is a super high-throughput crushing machine designed for industrial use requiring substantial throughput. It is capable of handling abrasive materials efficiently.

Technical Specifications

  • Feed Opening Length: 2000 mm
  • Feed Opening Width: 1200 mm
  • Maximum Feed Size: 1100 mm
  • Adjustable Discharge Opening Range: 150-300 mm
  • Shaft Speed: 220 rpm
  • Motor Power: 315 kW
  • Weight: 85,000 kg
  • Capacity: 1200-1300 t/h

Application Features

  • Symmetrical Crushing Chamber: Enhances feeding efficiency and throughput.
  • Mechanical Wedge Adjustment: Easier and safer adjustment of the discharge opening.
  • Compact Design: Integrated motor base reduces space requirement and simplifies installation.

Key Advantages

  • Heavy-Duty Components: Utilizes high-quality cast steel and large, forged eccentric shaft for increased reliability.
  • Longevity: Cheek plates protect the moving jaw from wear and tear, extending the lifespan.
  • Smooth Operation: Optimized crushing angle ensures efficient crushing and smooth passage of material.
