Sand Aggregate IndustryComprehensive Service ProviderSand Aggregate IndustryComprehensive Service ProviderJaw crusher
| model | JYCX100 |
| Feed opening | 760 x 1000 mm |
| Max feed size | 630 mm |
| CSS Range | 70 - 175 mm |
| Capacity(by hour) | 130 - 420 tph |
| Motor power | 110 KW |
| Dimensions | 3700 x 2440 x 2520 mm |
| Weight | 3700 kg |
*Note: The processing capacity of the JYCX100 jaw crusher may vary with different materials and feeding sizes.
500TPH Crushing & Screening Plant Pics
In this production line we get to know that the bulk material should be firstly crushed by crusher for large size finished material and then it is crushed into smaller ones for little stones.
This small gravel aggregates production line built by Dingli has reached our expected hourly capacity.

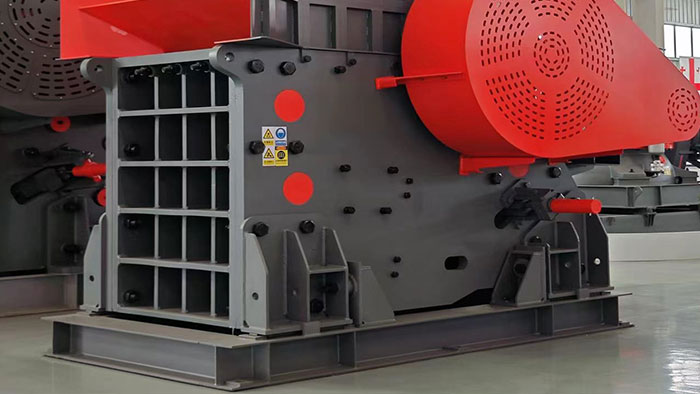

The JYCX100 European Type Jaw Crusher is a versatile and robust primary crusher designed for applications requiring high throughput and reliability. With a feed opening of 760 x 1000 mm, this model can handle materials up to 630 mm in size. The crusher is powered by a 110 kW motor and weighs 3700 kg, making it suitable for a wide range of crushing tasks.
Sturdy Frame: Welded from premium steel plates, the frame is built to withstand intense operating environments and maintain structural integrity over time.
Highly Durable Jaw Head: Utilizing advanced casting methods, the jaw head is engineered to resist wear and tear while maintaining optimal performance.
Reinforced Main Shaft: The main shaft is forged from high-quality steel and undergoes rigorous heat treatment to achieve superior strength and reliability.
Efficient Crushing Mechanism: The design includes a large centrifugal force and inclined toggle plate, increasing the efficiency of the crushing process.
Adaptable Discharge Settings: The adjustable discharge range allows for customization of output sizes, catering to diverse processing needs.
Smooth Operation: A hydraulic adjustment system ensures smooth and consistent operation, reducing downtime and maintenance costs.
