Product data

modelMC1000
Feed opening1000 x 760 mm
CSS Range70 - 200 mm
Capacity(by hour)120- 485 tph
Motor power110 kW
Weight20,060 kg
Rotation speed of eccentric shaft260 rpm

*Note: The processing capacity of the MC1000 jaw crusher may vary with different materials and feeding sizes.

Request a quoteMobiles tracked brochure

Our range jaw crushers

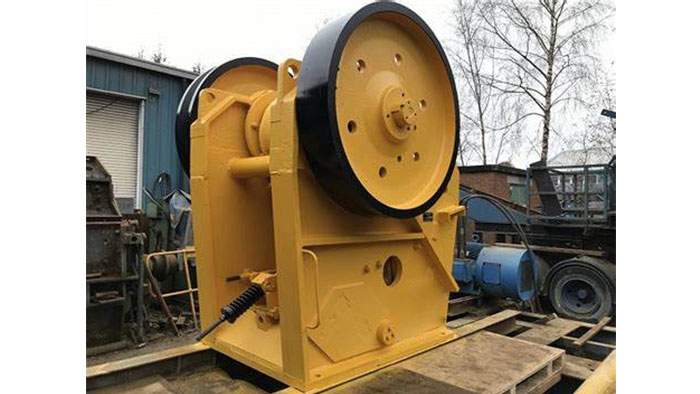

1000 x 600 jaw crusher

1000 x 600 jaw crusher1000 x 600

Nominal capacity85 - 210 tph

Max. feed size575 mm

Motor power110 KW

Live Chat

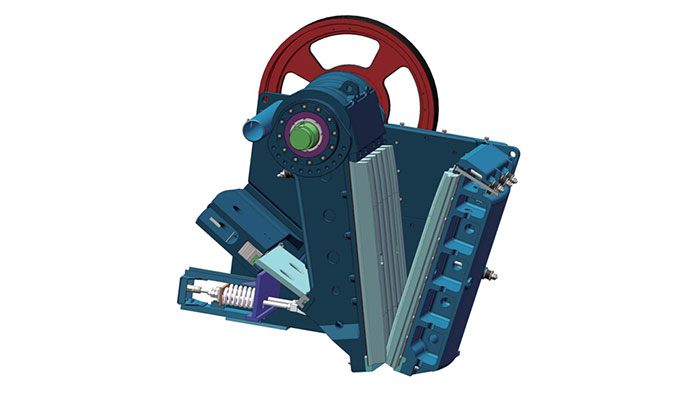

MC800 jaw crusher

MC800 jaw crusherMC800

Nominal capacity55- 330 tph

Max. feed size

Motor power75 kW

Live Chat
1000 x 625 jaw crusher

1000 x 625 jaw crusher1000 x 625

Nominal capacity80 – 210 Mtph

Max. feed size600 mm

Motor power110 KW

Live Chat

Case stories

5000TPH Limestone Crusher Plant in Zhumadian

Two 2500-3000tph production lines enter into operation at the same time. In order to ensure both the quality and capacity we configure two sets of PCZ2125 heavy hammer impact crusher for primary crushing 4 sets of shaping hammer crusher a

Automatic Stone Production Line in Guizhou

Seen from the picture the monitoring system can clearly monitor every corner of the stone production line. It is part of our whole automatic stone production line.

300TPH Stone Plant in Laibin Guangxi

It is vital to select quality production equipment for the first investment of a small-scale stone plant. Dingli’s quality equipment can help the customer for initial investment enter into rapid production.

Additional product information

MC1000 Jaw Crusher: High-Capacity Crushing with Modular Design

Technical Specifications

  • Feed Opening Width: 1000 mm
  • Feed Opening Depth: 760 mm
  • Power: 110 kW
  • Speed: 260 rpm
  • Weight: 20,060 kg
  • Capacity: 120-485 t/h
  • Product Size: Up to 450 mm (adjustable)

Key Features

  • Modular, Non-Welded Frame: Offers superior fatigue resistance and flexible installation options.
  • Precisely Balanced: Simple and cost-effective setup.
  • High-Quality Cast Steel Parts: Durable and low-cost operation.
  • Large Bearings: Four identical bearings for enhanced durability.
  • Cast Steel Moving Jaws and Walls: Strong and long-lasting structure.
  • Double Wedge Adjustment System: Easy and safe discharge opening adjustment.
  • Automated Lubrication: Ensures smooth operation.

Applications

  • Stone Crushing
  • Mining Operations
  • Recycling Concrete and Asphalt
  • Industrial Waste Processing

Performance Highlights

  • Well-Designed Crushing Chamber: Large stroke and high power for efficient crushing.
  • Customizable Toothed Plates and Side Liners: Suitable for various applications.
  • Controlled Feed Rate: Ensures uniform output and maximizes capacity.
