Home>Specifications and models>jaw crushers
Request a quote

Product data

modelPE-750 x 1060
Feed opening750 x 1060 mm
Max feed size630 mm
CSS Range100 - 220 mm
Capacity(by hour)120 - 211 tph
Motor power110 kW
Dimensions2520 x 2440 x 2872 mm

*Note: The processing capacity of the PE-750 x 1060 jaw crusher may vary with different materials and feeding sizes.

Request a quoteMobiles tracked brochure

Our range jaw crushers

PEY-750x1060 jaw crusher

PEY-750x1060 jaw crusherPEY-750 x 1060

Nominal capacity120 - 220 tph

Max. feed size630 mm

Motor power110 kW

Live Chat

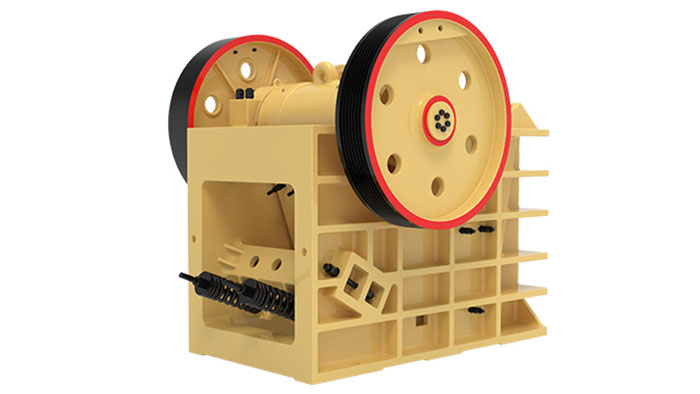

PE-870X1060 jaw crusher

PE-870X1060 jaw crusherPE-870 x 1060

Nominal capacity160 - 368 tph

Max. feed size700 mm

Motor power132 kW

Live Chat
PE-600X900 jaw crusher

PE-600X900 jaw crusherPE-600 x 900

Nominal capacity64 - 112 tph

Max. feed size500 mm

Motor power75 kW

Live Chat

Case stories

2000TPH Stone Production Line in Guangan Sichuan

On the basis of local materials of limestone our technicians elaborately inspected the field for the best place and built this Sichuan production line with convenient resource places production and transportations.

600-800TPH Stone Production Line of Lutong Company

Equipment configuration: PCZ1620 heavy hammer crusher ZG2028 vibrating feeder 3YKZ2070 vibrating screen*2 sets. Performance feature: low investment quick interest gain high automation.

160TPH Stone Plant in Guangxi

From this picture PCZ1308 hammer crusher of Xinxiang Dingli as the secondary crushing machine can crush and shape stone into high quality finished material with higher value than other ordinary stone.

Additional product information

PE-750X1060 Jaw Crusher: Enhanced Capacity for Diverse Needs

Technical Details

  • Feeder Opening: 750x1060 mm
  • Max Feed Size: 630 mm
  • Discharge Opening Range: 100～220 mm
  • Capacity: 120～211 t/h
  • Motor: Y315L-8, 110 kW

Key Features

  • Increased capacity, making it suitable for larger scale operations while maintaining reliability.
  • Adaptable, capable of processing different types of materials with varying hardness levels.
  • Durable, with a design that ensures long-term use without frequent repairs.

ApplicationsSuited for extensive use in highways, railways, airport construction, mining extraction, construction material processing, and metallurgical industries.
