Sand Aggregate IndustryComprehensive Service ProviderSand Aggregate IndustryComprehensive Service ProviderJaw crusher
| model | PEY-750 x 1060 |
| Feed opening | 750 x 1060 mm |
| Max feed size | 630 mm |
| CSS Range | 80 - 150 mm |
| Capacity(by hour) | 120 - 220 tph |
| Motor power | 110 kW |
| Dimensions | 4980 x 2500 x 3100 mm |
| Weight | 37,800 kg |
| Rotation speed of eccentric shaft | 250 r/min |
*Note: The processing capacity of the PEY-750 x 1060 jaw crusher may vary with different materials and feeding sizes.
Nominal capacity40 - 100 tph
Max. feed size250 mm
Motor power75 kW
Live Chat
Nominal capacity30 - 65 tph
Max. feed size340 mm
Motor power30 kW
Live ChatNominal capacity120 - 220 tph
Max. feed size630 mm
Motor power110 kW
Live Chat
2500 Ton/Day Gravel Aggregate Production Process Configuration List Equipment Model Unit(s) Vibrating Feeder ZG1038 1 Heavy Hammer Crusher PCZ1510 1 Hammer Crusher XPC0808 1 Vibrating Screen 2YKQ2060 2 The bulk limestone is evenly fed into
The pics show actual production site. This stone production line is close to the mining area which reduces a lot of transport cost and increases the overall profit of the operator.
This 1,000 tons of aggregate production line was put into operation in September 2018, using DLPCZ1820 heavy hammer crusher, DLPC1220 plastic hammer crusher, DL3YKZ3070 vibrating screen and other sets of mine production equipment, the introduction of a complete set of mine intelligent management system.

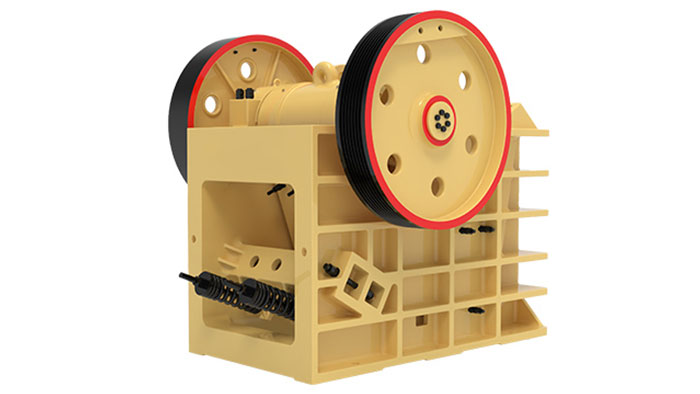

For applications requiring the handling of very large particle sizes, the PEY Series Hydraulic Protection Jaw Crusher PEY-750x1060 provides a robust solution. This equipment can process feed sizes up to 630mm, adjusting the discharge size between 80 and 150mm, suitable for industries needing higher crushing capabilities.
The PEY-750x1060 has a processing capacity ranging from 120 to 220 tons per hour, with an eccentric shaft speed of 250 r/min, ensuring efficient performance during large-scale crushing tasks. Fitted with a 110 kW motor, this machine is capable of operating efficiently within confined spaces. Its size of 4980 x 2500 x 3100 mm and weight of 37800 kg make it ideal for applications requiring larger crushing capacities.
When encountering unbreakable objects, the hydraulic protection system of the PEY Series Hydraulic Protection Jaw Crusher PEY-750x1060 automatically unloads to prevent sudden overload impacts on the machine. This intelligent design not only extends the machine’s lifespan but also reduces the risk of production interruptions due to faults.
By optimizing the hydraulic system and achieving efficient crushing, the PEY-750x1060 reduces energy consumption while increasing productivity. This is particularly attractive for businesses looking to cut costs while maintaining quality. Choosing the PEY-750x1060 means investing in a sustainable future.
