Sand Aggregate IndustryComprehensive Service ProviderSand Aggregate IndustryComprehensive Service ProviderJaw crusher
| model | PEY-300x1300 |
| Feed opening | 300 x 1300 mm |
| Max feed size | 250 mm |
| CSS Range | 20 - 100 mm |
| Capacity(by hour) | 40 - 100 tph |
| Motor power | 75 kW |
| Dimensions | 4050 x 3420 x 1850 mm |
| Weight | 18,200 kg |
| Rotation speed of eccentric shaft | 255 r/min |
*Note: The processing capacity of the PEY-300x1300 jaw crusher may vary with different materials and feeding sizes.
Nominal capacity50 - 120 tph
Max. feed size425 mm
Motor power 55 kW
Live Chat
Nominal capacity30 - 105 tph
Max. feed size250 mm
Motor power55 - 75 kW
Live Chat
Nominal capacity120 - 220 tph
Max. feed size630 mm
Motor power110 kW
Live Chat
Nanshui Building Materials Co., Ltd. and Zhongyu cooperate to build a new 1500 tons of sand and stone processing production line, integrate environmental protection design, and install sewage treatment devices, will pollute the environment, and vigorously promote the smooth progress of local green mine construction work.
In this production site all the equipment is orderly placed in there for different processes. And it can save the electric energy by using huge inertance of high place production line to convey materials to the relative process equipment.
Production line configuration: DLPCZ1620 heavy hammer crusher DLZG2050 vibrating feeder DL2YKZ2070 vibrating screen*2 sets DL3YKZ3070 vibrating screen*2 sets DL2YKZ3070 vibrating screen DLDMCA deduster*5 sets

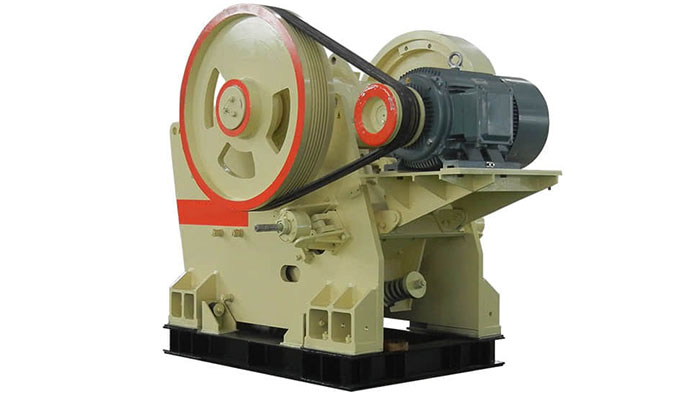

For applications requiring the handling of wider materials, the PEY Series Hydraulic Protection Jaw Crusher PEY-300x1300 provides an efficient solution. This equipment can process feed sizes up to 250mm, adjusting the discharge size between 20 and 100mm, suitable for industries needing higher precision in crushing.
The PEY-300x1300 delivers a stable processing capacity of 40 to 100 tons per hour, with a speed of 255 r/min for the eccentric shaft, ensuring efficient crushing processes. Equipped with a 75 kW motor, this machine is capable of operating efficiently within confined spaces. Its compact dimensions of 4050 x 3420 x 1850 mm and weight of 18200 kg make installation and transportation convenient.
The hydraulic protection device of the PEY Series Hydraulic Protection Jaw Crusher PEY-300x1300 automatically unloads when encountering unbreakable materials, preventing overload impacts on the machine. This intelligent design enhances reliability and durability while minimizing production interruptions due to faults.
The PEY-300x1300 employs an advanced electrical control system and user-friendly design, allowing operators to easily perform routine checks and maintenance work. This human-centric setting not only reduces downtime and costs but also improves overall production efficiency.
