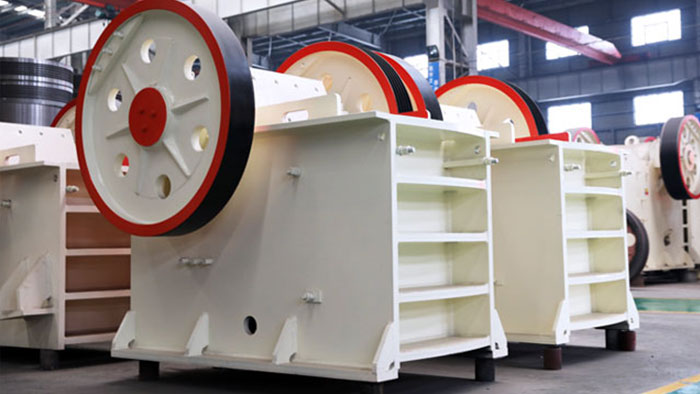

Sand Aggregate IndustryComprehensive Service ProviderSand Aggregate IndustryComprehensive Service ProviderJaw crusher
| model | PE400 x 600 |
| Feed opening | 400 x 600 mm |
| Max feed size | 340 mm |
| CSS Range | 40 - 100 mm |
| Capacity(by hour) | 16 - 64 tph |
| Motor power | 30 KW |
| Dimensions | 1623 x 1736 x 1615 mm |
| Weight | 7 t |
| Rotation speed of eccentric shaft | 270 r/min |
*Note: The processing capacity of the PE400 x 600 jaw crusher may vary with different materials and feeding sizes.
Nominal capacity220 - 380 tph
Max. feed size750 mm
Motor power110 KW
Live Chat
Nominal capacity500 - 1200 tph
Max. feed size1200 mm
Motor power280 - 380 KW
Live Chat
Nominal capacity110 - 320 tph
Max. feed size630 mm
Motor power110 KW
Live Chat
Basic configuration includes ZG2028 vibrating feeder PCZ1820 heavy hPC1220 hammer crusher 2YKZ3070 vibrating screen and relative dedusting equipment etc.
Its seen in the pics that the finished materials with various grain sizes are stored in the different silos for sale. The ordinary aggregates and fine aggregates are well separated.
In Zhongyu Dingli production sites workers orderly installed equipment for 500tph capacity and 5 finished materials with three best sold finished material.
Technical Specifications:
Feed Opening Size (mm): 400×600
Maximum Feed Size (mm): 340
Discharge Opening Adjustment Range (mm): 40-100
Capacity (t/h): 16-64
Eccentric Shaft Speed (r/min): 270
Motor Power (kw): 6P 30
Dimensions (L×W×H) (mm): 1623×1736×1615
Total Weight (t): 7
Description:Designed for industrial applications, the PE400×600 jaw crusher boasts a significant increase in processing capacity, capable of handling materials up to 340 mm in size. This model is equipped with a powerful motor to ensure efficient operation across a wide range of materials. The adjustable discharge opening provides operators with the flexibility to produce different output sizes as required. Built for heavy-duty use, this crusher is a key component in any large-scale crushing operation.
