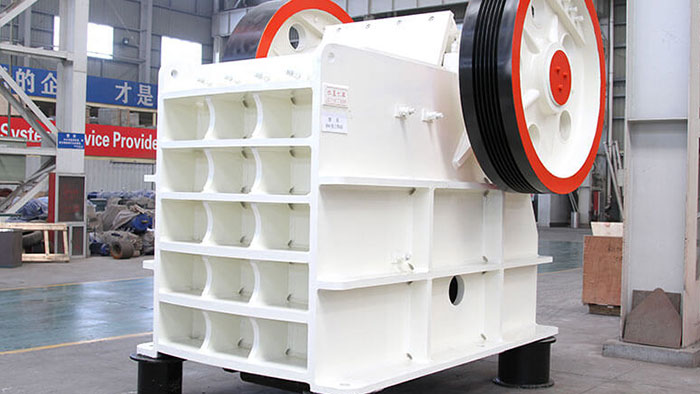

Sand Aggregate IndustryComprehensive Service ProviderSand Aggregate IndustryComprehensive Service ProviderJaw crusher
| model | PE600 x 900 |
| Feed opening | 600 x 900 mm |
| Max feed size | 500 mm |
| CSS Range | 65 - 160 mm |
| Capacity(by hour) | 50 - 160 tph |
| Motor power | 55 KW |
| Dimensions | 2530 x 1900 x 2340 mm |
| Weight | 17 t |
| Rotation speed of eccentric shaft | 254 r/min |
*Note: The processing capacity of the PE600 x 900 jaw crusher may vary with different materials and feeding sizes.
Nominal capacity400 - 1000 tph
Max. feed size1020 mm
Motor power160 - 245 KW
Live Chat
Nominal capacity80 - 240 tph
Max. feed size500 mm
Motor power55 KW
Live Chat
Nominal capacity3 - 10 tph
Max. feed size180 mm
Motor power11 KW
Live Chat
With large quantity of soil in raw material it is suitable to adopt the feeder functioned with screening which can greatly reduce the impurities in production and improve the material cleanness; moreover the customer satisfaction can also be improved.
This production line is a leading project for stepping into aggregates industry.
It’s seen from the picture the vehicles are transporting the finished materials away from the site. All the roads of the mining area have been hardened so as to protect the production environment.
Technical Specifications:
Feed Opening Size (mm): 600×900
Maximum Feed Size (mm): 500
Discharge Opening Adjustment Range (mm): 65-160
Capacity (t/h): 50-160
Eccentric Shaft Speed (r/min): 254
Motor Power (kw): 6P 55
Dimensions (L×W×H) (mm): 2530×1900×2340
Total Weight (t): 17
| Closed side setting (mm) | Capacity (t/h) |
|---|---|
| 65 | 60.5 |
| 85 | 85.3 |
| 105 | 110 |
| 135 | 147.4 |
| 160 | 178 |
