Product data

modelPEV1500x1800
Max feed size1250 mm
CSS Range210 - 360 mm
Capacity(by hour)500 - 1100 tph
Motor power280 kW
Dimensions7460 x 6240 x 4250 mm
Weight122,000 kg

*Note: The processing capacity of the PEV1500x1800 jaw crusher may vary with different materials and feeding sizes.

Request a quoteMobiles tracked brochure

Our range jaw crushers

PEV250x1200 jaw crusher

PEV250x1200 jaw crusherPEV250 x 1200

Nominal capacity20 - 65 tph

Max. feed size210 mm

Motor power37 - 45 kW

Live Chat
PEV600x900 jaw crusher

PEV600x900 jaw crusherPEV600x900

Nominal capacity100 - 200 tph

Max. feed size510 mm

Motor power55 - 75 kW

Live Chat

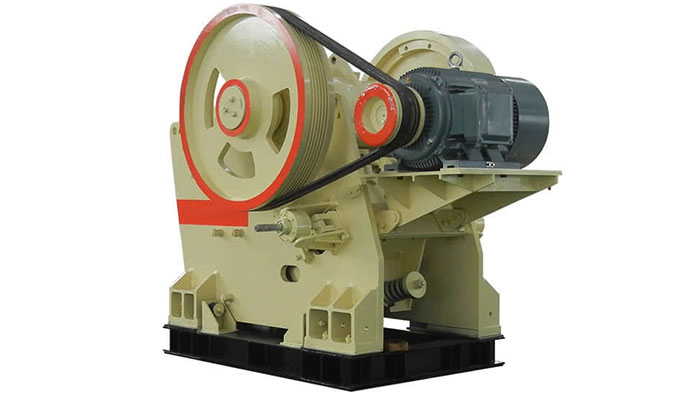

PEV1200x1500 jaw crusher

PEV1200x1500 jaw crusherPEV1200x1500

Nominal capacity350 - 950 tph

Max. feed size1020 mm

Motor power160 - 220 kW

Live Chat

Case stories

1000TPH Stone Plant in Yidu Hubei

Investment advantage: heavy hammer crusher replaces the traditional combination of jaw crusher and impact crusher. It is thus featured by small investment and fast recovery of cost.

50TPH Sand Production Line in Changde Hunan

50TPH Sand Production Line Layout Main Equipment Name Model Power(kw) Set Dual Rotor sand Maker ZSJ0808 2*55kw 1 Vitrating Screen 3YKZ2060 30kw 1 Sand Production Process After processing of primary crusher the crushed limestone is conveyed

200TPH Aggregates Production Line in Ningxia

In this hard rock crushing sites Xinxiang Dingli after-sale servicers are checking machine problems and giving solution to ensure a quick production. Now there are about several hundred after-sale servicers all over the country to better h

Additional product information

PEV1500x1800 European-Type Jaw Crusher: Ultimate Crushing Performance

Product Overview

  • The PEV1500x1800 European-Type Jaw Crusher delivers ultimate crushing performance for super-large projects.

Technical Specifications

  • Model: PEV1500x1800
  • Max Feed Size: ≤1250 mm
  • Discharge Opening: 210 - 360 mm
  • Production Capacity: 500 - 1100 t/h
  • Power: 280 kW
  • Dimensions (LxWxH): 7460 x 6240 x 4250 mm
  • Weight: 122 t

Applications

  • Suitable for super-large construction, mining projects, and other industries requiring high-capacity crushing.

Key Features

  • High-quality cast steel components in the moving jaw assembly enhance durability.
  • Toothed side plates increase the effective length of the jaw plates, improving productivity.
