Home>Specifications and models>jaw crushers
Request a quote

Product data

modelPEV250 x 1000
Max feed size210 mm
CSS Range25 - 50 mm
Capacity(by hour)20 - 50 tph
Motor power30 - 37 kW
Dimensions1680 x 2050 x 1370 mm
Weight7,000 kg

*Note: The processing capacity of the PEV250 x 1000 jaw crusher may vary with different materials and feeding sizes.

Request a quoteMobiles tracked brochure

Our range jaw crushers

JC250 x 1000 jaw crusher

JC250 x 1000 jaw crusherJC250 x 1000

Nominal capacity15 - 50 tph

Max. feed size220 mm

Motor power30 kW

Live Chat
PEV6040 jaw crusher

PEV6040 jaw crusherPEV6040

Nominal capacity250 - 450 tph

Max. feed size

Motor power345 - 510 kW

Live Chat
PEV2416 jaw crusher

PEV2416 jaw crusherPEV2416

Nominal capacity26 - 100 tph

Max. feed size

Motor power75 - 90 kW

Live Chat

Case stories

250-350TPH Hard Rock Crusher Plant in Xichang Sichuan

The above pictures show production site of hard rock crusher plant. Unlike traditional crushing plant it adopts only one set of hard rock crusher to complete the crushing process which greatly reduces the equipment investment and increase

3000t/h Stone Production Line

EPC general contract construction, production of washed-sand, concrete and other building materials, but also installed the Zhongyu Dingli intelligent mine management system, to achieve more convenient production line management and operation.

160-210TPH Gravel Aggregates Production Line in Yichun

This small gravel aggregates production line built by Dingli has reached our expected hourly capacity.

Additional product information

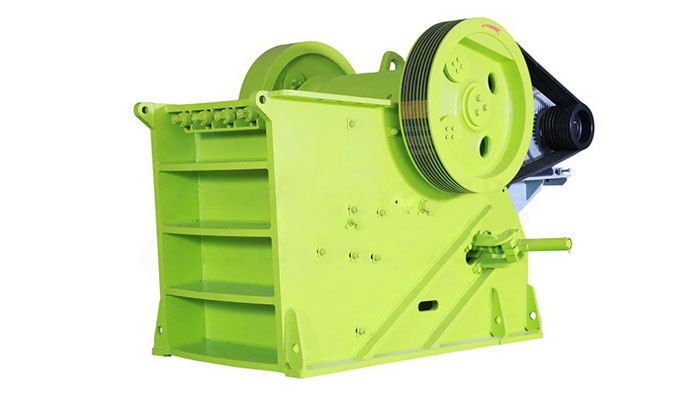

PEV250x1000 European-Type Jaw Crusher: Compact and Efficient Solution

Product Overview

  • The PEV250x1000 European-Type Jaw Crusher is a compact and efficient solution designed for small to medium-sized crushing tasks.

Technical Specifications

  • Model: PEV250x1000
  • Max Feed Size: ≤210 mm
  • Discharge Opening: 25 - 50 mm
  • Production Capacity: 20 - 50 t/h
  • Power: 30 - 37 kW
  • Dimensions (LxWxH): 1680 x 2050 x 1370 mm
  • Weight: 7 t

Applications

  • Suitable for various industries including construction, mining, and chemical engineering.

Key Features

  • Equipped with a wedge adjustment mechanism for easy regulation of the discharge opening.
  • Heavy-duty eccentric shaft made from forged blanks ensures stability and durability.

Contact us

jaw crusher
PEV250x1000 jaw crusher Technical documentation PEV250x1000 jaw crusher Technical documentation
