| model | PEV750 x 1060 |
| Feed opening | 750 x 1060 mm |
| Max feed size | 600 mm |
| CSS Range | 70-200 mm |
| Capacity(by hour) | 175 - 760 tph |
| Motor power | 110 KW |
| Weight | 22,280 kg |
*Note: The processing capacity of the PEV750 x 1060 jaw crusher may vary with different materials and feeding sizes.
Nominal capacity175 - 760 tph
Max. feed size600 mm
Motor power110 KW
Live Chat
Nominal capacity20 - 65 tph
Max. feed size210 mm
Motor power37 - 45 kW
Live Chat
In the production site it can be seen that with a relatively high degree of automation the production line almost does not need too much manpower and the discharge size can also be adjusted with relatively high crushing efficiency.
Leiming Stone Production Line is with closed-loop design that has less dust pollution. Dingli is committed to building green and new-type gravel aggregates production line.
In this production line we firstly crushed the huge materials into smaller ones by crusher and then crushed into smaller finished stones by second crushing; lastly we need a sand maker to produce quality sand.

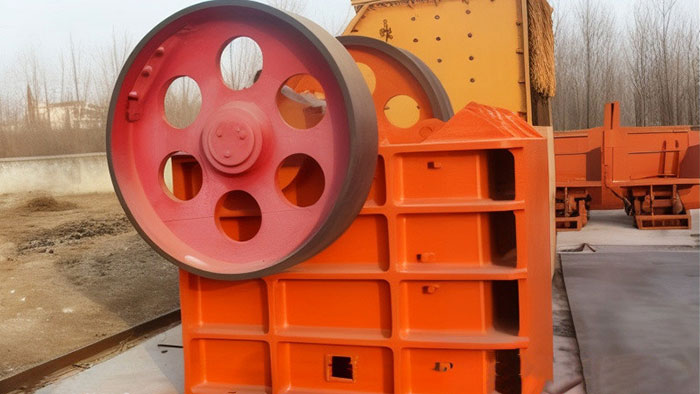

The PEV750×1060 Jaw Crusher is a robust and efficient solution for primary crushing applications. With a feed opening dimension of 750×1060 mm, this model is designed to handle materials up to 600 mm wide and 750 mm deep. The crushing capacity ranges from 105 to 155 tons per hour, making it ideal for operations requiring high throughput. Equipped with a powerful 110 kW motor, the PEV750×1060 is capable of processing a wide variety of materials, from river pebbles to hard ores.
Working Principle: The motor drives the main pulley through V-belts, which in turn drives the eccentric shaft, causing the moving jaw to perform a cyclical motion that crushes the material within the chamber. The crushed material is then discharged by gravity through the discharge opening.
Modular Non-Welded Structure: This design minimizes the risks associated with welding, enhancing the overall lifespan of the crusher and reducing maintenance downtime.
Integrated Motor Mounting: Pre-installed motor frame reduces the installation space and V-belt length, improving belt life and simplifying the setup process.
Finite Element Analysis (FEA): Utilizing advanced design software, the PEV750×1060 is optimized for performance and durability.
Optimized Crushing Chamber: The crushing chamber is designed to maximize throughput and minimize energy consumption.
Easy Adjustment: The wedge adjustment system allows for easy regulation of the crushing cavity, even during operation.
Optional Accessories: Includes a feed hopper, safety guards, automatic lubrication system, and hydraulic adjustment system to enhance efficiency and safety.
