Sand Aggregate IndustryComprehensive Service ProviderSand Aggregate IndustryComprehensive Service ProviderJaw crusher
| model | PEW1107 |
| Feed opening | 1100 x 700 mm |
| Max feed size | 630 mm |
| CSS Range | 60 - 200 mm |
| Capacity(by hour) | 110 - 490 tph |
| Motor power | 90 KW |
| Weight | 2386 x 2247 x 1735 mm |
*Note: The processing capacity of the PEW1107 jaw crusher may vary with different materials and feeding sizes.
Nominal capacity 200 - 500 t/h
Max. feed size720 mm
Motor power132 - 160 kW
Live Chat
Nominal capacity150 - 350 t/h
Max. feed size620 mm
Motor power110 - 132 kW
Live Chat
At the production site it is seen that all the crushing and vibrating screening equipment are transported to the site which is also the actual situation of installation site.
Investment advantage: the single-line arrangement of crushing process facilitates the transportation. The combined screening of multi vibrating screens makes the material much cleaner.
At the production site it is seen that the material can be crushed into sound grain shape after successively crushing of large heavy hammer crusher and shaping crusher. Our shaping crusher has sound effect in optimizing grain shape.

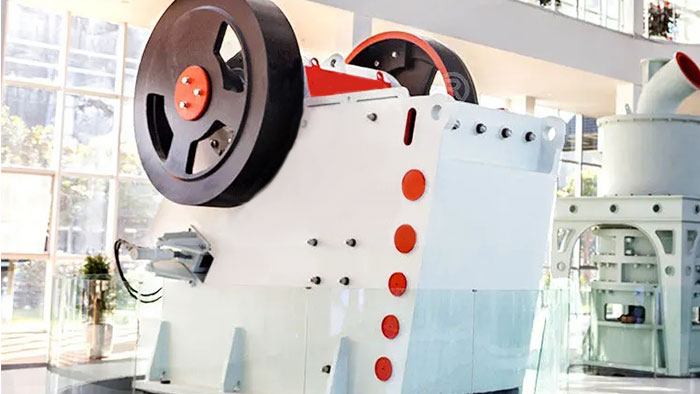

The PEW1107 European Type Jaw Crusher is designed for efficient crushing in various applications such as gravel plants, mining operations, and more. With a feed opening of 1100 x 700mm, it can handle a maximum feed particle size of 630mm. The adjustable discharge setting ranges from 60 to 200mm, with a capacity of 110 to 490 tons per hour. Equipped with a 90kW motor, the unit measures 2386 x 2247 x 1735mm. The PEW1107 utilizes advanced hydraulic control systems to ensure safe operation and easy maintenance.
The hydraulic oil station provides lubrication for the PEW1107, ensuring safe operation under various conditions. Additionally, the hydraulic cleaning system can quickly clear the crushing chamber when the machine stops unexpectedly, reducing downtime and improving efficiency.
