Product data

modelSJV800
Feed opening800 x 1150 mm
Max feed size640 mm
CSS Range70 - 200 mm
Capacity(by hour)190 - 750 tph
Motor power132 kW
Weight21,500 kg
Rotation speed of eccentric shaft280 rpm

*Note: The processing capacity of the SJV800 jaw crusher may vary with different materials and feeding sizes.

Request a quoteMobiles tracked brochure

Our range jaw crushers

1100 x 800 jaw crusher

1100 x 800 jaw crusher1100 x 800

Nominal capacity

Max. feed size760 mm

Motor power110 KW

Live Chat
800 x 500 jaw crusher

800 x 500 jaw crusher800 x 500

Nominal capacity50 – 140 Mtph

Max. feed size455 mm

Motor power55 KW

Live Chat

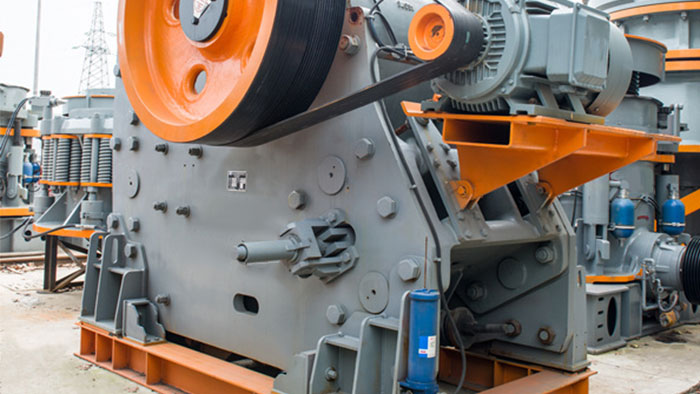

SJV600 jaw crusher

SJV600 jaw crusherSJV600

Nominal capacity120 - 385 tph

Max. feed size460 mm

Motor power90 kW

Live Chat

Case stories

800TPH Limestone Production Line in Liuzhou Guangxi

Configuration List Equipment Model Unit(s) Vibrating Feeder ZG2038 1 Heavy Hammer Crusher PCZ1815 1 Hammer Crusher XPC1216 1 Vibrating Screen 3YKZ3070 2 Vibrating Screen 2YKZ3070 2 800TPH Gravel Aggregates Production Process The bulk limest

Hammer Crusher Application Case in Sichuan

In this installation site we find many small stone crushers are replaced by huge equipment for huge stone production line with about 2000 ton output.

500TPH Stone Crushing Plant in Shaoyang Hunan

The raw materials can be exploited in the place near production site which saves a lot of transport cost. All the equipment manufactured by us can right meet the requirements of the customer. With reasonable configuration such production

Additional product information

SJV800 Jaw Crusher: Versatile Crushing Solution

Introduction

  • The SJV800 jaw crusher is a versatile crushing machine applicable to various scales of crushing operations.
  • Its design focuses on flexibility and efficiency to meet diverse user needs.

Product Features

  • Versatility: Suitable for processing a wide range of materials, including granite and basalt.
  • High-Efficiency Production: The V-shaped crushing chamber design increases material throughput, boosting crushing efficiency.
  • Convenient Adjustment: The wedge system allows for quick adjustment of the discharge opening size, adapting to different particle size requirements.
  • Stable Operation: The non-welded frame design reduces stress concentration, extending the service life of the equipment.

Technical Parameters

  • Model: SJV800
  • Feed Opening Size: 800*1150 mm
  • Maximum Feed Size: 640 mm
  • Adjustable Discharge Opening Range: 70~200 mm
  • Eccentric Shaft Speed: 280 r/min
  • Capacity: 190~750 t/h
  • Motor Power: 132 kW
  • Approximate Weight: 21.5 t

Application Scope

  • Suitable for industries including mining, metallurgy, construction, highways, railways, and water conservancy.
  • Applicable for processing hard and medium-hard materials like granite, basalt, limestone, river pebbles, etc.
