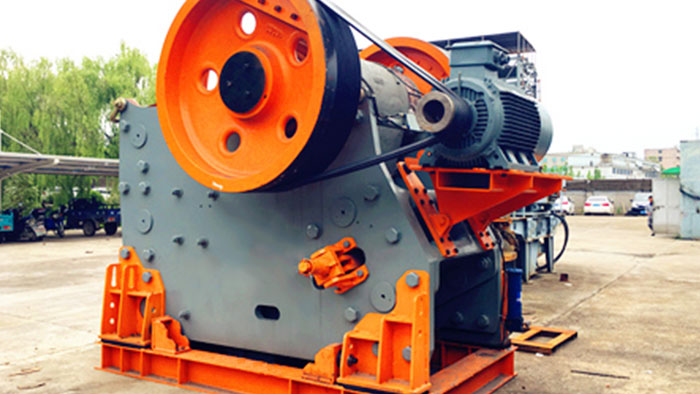

Sand Aggregate IndustryComprehensive Service ProviderSand Aggregate IndustryComprehensive Service ProviderJaw crusher
| model | SJV950 |
| Feed opening | 950 x 1250 mm |
| Max feed size | 760 mm |
| CSS Range | 100 - 250 mm |
| Capacity(by hour) | 290 - 800 tph |
| Motor power | 160 kW |
| Weight | 43,300 kg |
| Rotation speed of eccentric shaft | 220 rpm |
*Note: The processing capacity of the SJV950 jaw crusher may vary with different materials and feeding sizes.
This production line is a leading project for stepping into aggregates industry.
50TPH Sand Production Line Layout Main Equipment Name Model Power(kw) Set Dual Rotor sand Maker ZSJ0808 2*55kw 1 Vitrating Screen 3YKZ2060 30kw 1 Sand Production Process After processing of primary crusher the crushed limestone is conveyed
Equipment Configuration of Production Line Model Power Units Price Vibrating Feeder ZG2050 Vibrating Feeder 15*2 1 Contact us for details Heavy Hammer Crusher PCZ1820 Heavy Hammer Crusher 450*2
For applications requiring the handling of large volumes of material, the SJV950 jaw crusher provides a professional solution.
The design considers the demands of high-intensity work, ensuring long-term stable operation.
High-Capacity Handling: Suitable for scenarios requiring extensive crushing operations.
Efficient Crushing: The V-shaped crushing chamber design increases material flow speed, reducing the risk of blockages.
Flexible Adjustment: The wedge system enables rapid adjustment of the discharge opening, increasing operational flexibility.
Durable Construction: The non-welded frame design enhances the robustness of the equipment, extending its lifestrong.
Widely used in industries such as mining, metallurgy, building materials processing, and more.
Suitable for processing hard materials like granite, basalt, limestone, river pebbles, etc.
