Sand Aggregate IndustryComprehensive Service ProviderSand Aggregate IndustryComprehensive Service ProviderJaw crusher
| model | ZB1000 x 1200 |
| Feed opening | 1000 x 1200 mm |
| Max feed size | 850 mm |
| CSS Range | 200 - 300 mm |
| Capacity(by hour) | 280 - 560 tph |
| Motor power | 132 KW |
| Dimensions | 5350 x 4280 x 3050 mm |
*Note: The processing capacity of the ZB1000 x 1200 jaw crusher may vary with different materials and feeding sizes.
Nominal capacity760 - 1590 tph
Max. feed size
Motor power400 KW
Live ChatNominal capacity280 - 560 tph
Max. feed size850 mm
Motor power132 KW
Live Chat
Nominal capacity85 - 210 tph
Max. feed size575 mm
Motor power110 KW
Live Chat
This is the EPC general contract project of Zhongyu Dingli, the design output of 1000-1500t/h, the production of sand, stone powder, 3-5mm, 5-10mm, 10-15mm, 10-20mm, 20-30mm and other specifications of stone.
Machine configuration: ZG1550 vibrating feeder + PCZ1615 heavy hammer crusher + 3YKQ2470 vibrating screen*2 + XPC1216 hammer crusher + 4YKQ2670 vibrating screen*2 + XS3016 bucket wheel sand washer*2

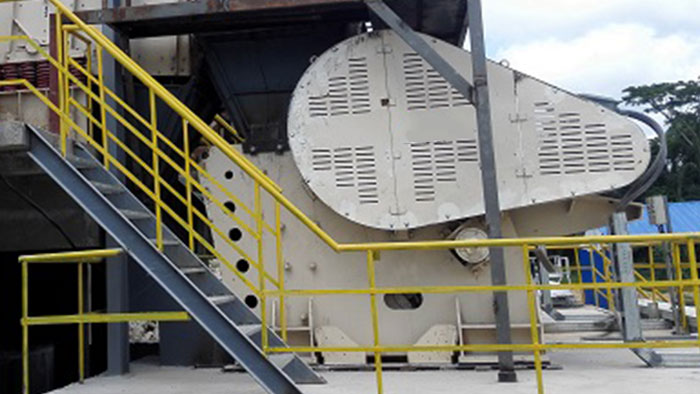

It’s seen the crusher is installed below the silo; the aggregates are fed into the crusher in a convenient and efficient manner. The corresponding motor equipped ensures equipment to operate according to rated power with low consumption.

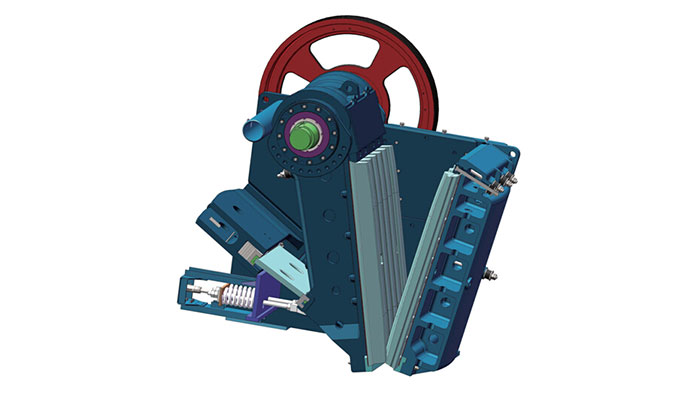

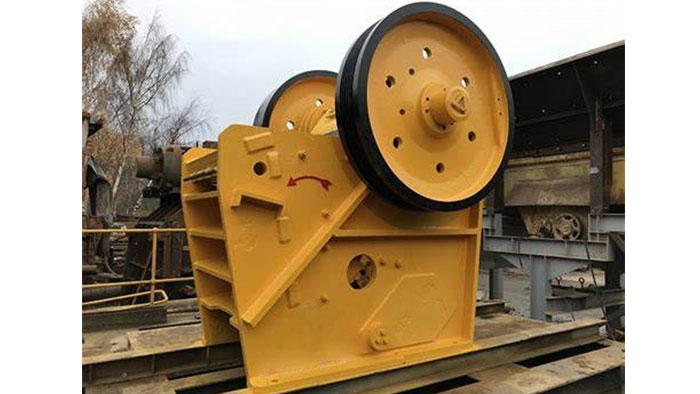

The ZB1000 x 1200 jaw crusher is a giant machine designed for ultra-high volume crushing tasks. With an inlet size of 1000 x 1200 mm, it can manage material sizes up to 850 mm. The adjustable discharge gap ranges from 200 to 300mm, providing a wide range of output sizes. This model offers a processing capacity of 280 to 560 tons per hour, making it ideal for operations that demand significant throughput. The motor power ranges from 132 kW, and the unit weighs approximately 69 tonnes. The dimensions are 5350 x 4280 x 3050 mm, ensuring a solid foundation for high-volume crushing operations.
The ZB1000 x 1200 is designed to handle ultra-high volumes of material, making it a perfect fit for mega-scale applications where massive throughput is required. Its heavy-duty construction and powerful motor ensure that it can meet the demands of any large-scale crushing project.
