Sand Aggregate IndustryComprehensive Service ProviderSand Aggregate IndustryComprehensive Service ProviderJaw crusher
| model | ZB900 x 1200 |
| Feed opening | 900 x 1200 mm |
| Max feed size | 750 mm |
| CSS Range | 95 - 165 mm |
| Capacity(by hour) | 220 - 450 tph |
| Motor power | 132 KW |
| Dimensions | 3800 x 3166 x 3045 mm |
| Weight | 58,000 Kg |
*Note: The processing capacity of the ZB900 x 1200 jaw crusher may vary with different materials and feeding sizes.
Nominal capacity85 - 210 tph
Max. feed size575 mm
Motor power110 KW
Live Chat
Nominal capacity90 - 180 tph
Max. feed size480 mm
Motor power90 KW
Live Chat
The gravel aggregates production line is connected by the belt conveyor for directly transporting the aggregates to the concrete production project. With configuration of the complete set of gravel production equipment the crushing line ca
50TPH Sand Production Line Layout Main Equipment Name Model Power(kw) Set Dual Rotor sand Maker ZSJ0808 2*55kw 1 Vitrating Screen 3YKZ2060 30kw 1 Sand Production Process After processing of primary crusher the crushed limestone is conveyed
This 500tph stone production line configured by Xinxiang Dingli in Pingliang Gansu mainly adopts PCZ1615 heavy hammer crusher with hourly capacity of 4200-500 ton ZG2038 vibrating feeder and several sets of our efficient vibrating screen.

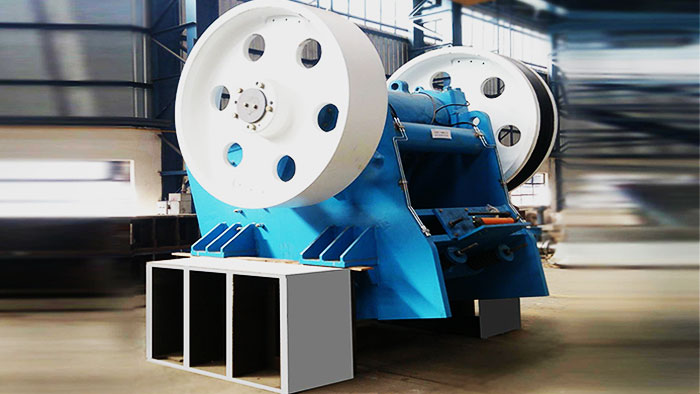

The ZB900 x 1200 jaw crusher is a heavy-duty machine built for maximum efficiency in demanding environments. With an inlet size of 900 x 1200mm, it can manage material sizes up to 750mm. The adjustable discharge gap ranges from 95 to 165mm, providing flexibility in output size. This model has a processing capacity of 220 to 450 tons per hour, making it well-suited for operations that require significant throughput. The motor power ranges from 132 kW, and the unit weighs approximately 58 tonnes. The dimensions are 3800 x 3166 x 3045mm, offering a robust structure that supports high-volume crushing tasks.
The ZB900 x 1200 is designed to process large volumes of material continuously, thanks to its powerful motor and durable construction. It is capable of handling various types of rock and ore, delivering consistent performance and reliability even under heavy loads.
