Sand Aggregate IndustryComprehensive Service ProviderSand Aggregate IndustryComprehensive Service ProviderImpact sand maker

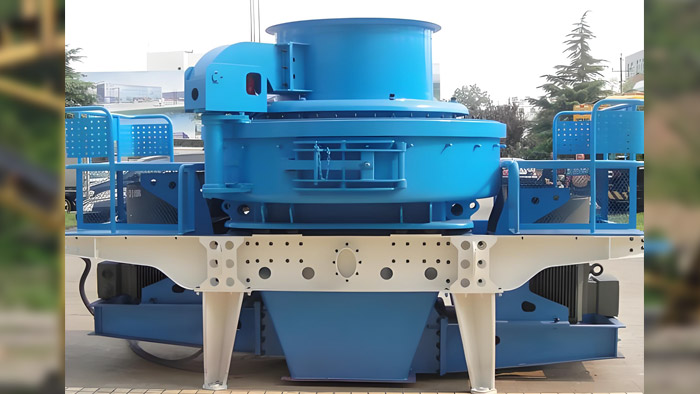

| Model | VC733L | VC733M | VC733H |
| Rotation Speed of Impeller (r/min) | 1455-1934 | ||
| Max Feed Size (mm) | 55 | ||
| Throughput (t/h) (Full feeding center / center plus waterfall feeding) | 165-248 | 162-286 | 238-350 |
| 215-415 | 285-532 | 325-585 | |
| Motor Power (kw) | 264 | 320 | 400 |
| Overall Dimensions (mm) | 4800x2360x2891 | ||
| Weight(motor not included) (kg) | ≤14020 | ||
*Note: The processing capacity of the VC733 cone crusher may vary with different materials and feeding sizes.
