Sand Aggregate IndustryComprehensive Service ProviderSand Aggregate IndustryComprehensive Service ProviderImpact sand maker

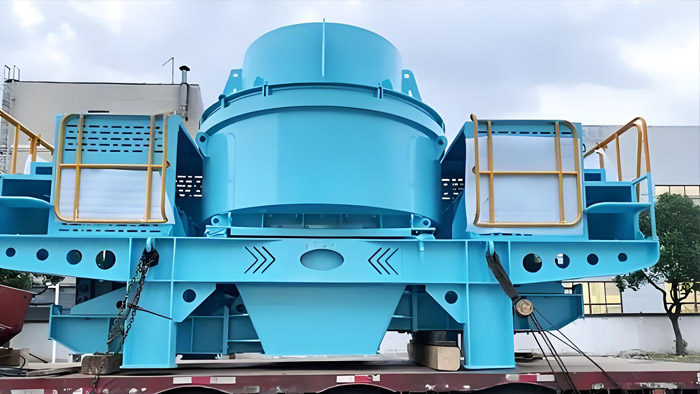

| Model | VC788L | VC788M |
| Rotation Speed of Impeller (r/min) | 517-597 | |
| Max Feed Size (mm) | 65 | |
| Throughput (t/h) (Full feeding center / center plus waterfall feeding) | 460-692 | 560-848 |
| 618-1154 | 761-1432 | |
| Motor Power (kw) | 2*400 | 2*500 |
| Overall Dimensions (mm) | 6506x3140x3937 | |
| Weight(motor not included) (kg) | ≤23220 | |
*Note: The processing capacity of the VC788 cone crusher may vary with different materials and feeding sizes.
