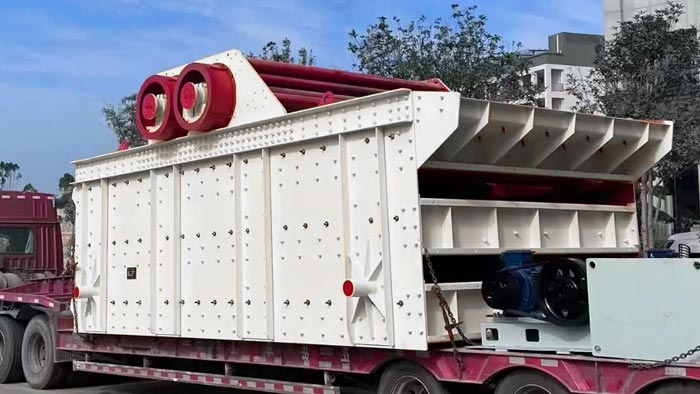

Sand Aggregate IndustryComprehensive Service ProviderSand Aggregate IndustryComprehensive Service ProviderDTS Series Dual-Shaft Elliptical Vibrating Screen
| Model | 2DTS3060 | 3DTS3060 |
| Layer | 2 | 3 |
| Screen specifications (mm×mm) | 3000×6000 | 3000×6000 |
| Max.feed size(mm) | 260 | 260 |
| Vibrating Frequency(r/min) | 840 | 840 |
| Double Amplitude(mm) | 11 | 11 |
| Angle(°) | 0-10 | 0-10 |
| Capacity(t/h) | 600-800 | 600-800 |
| Power(kW) | 37×2 | 45×2 |
| verall Dimension L×W×H (mm) | 6850×3740×2305 | 6850×3740×2895 |
*Note: The processing capacity of the DTS3060 Vibrating Screens may vary with different materials and feeding sizes.
With large quantity of soil in raw material it is suitable to adopt the feeder functioned with screening which can greatly reduce the impurities in production and improve the material cleanness; moreover the customer satisfaction can also be improved.
This construction sand production line has an annual output of 3 million tons of high-quality sand aggregate, 1 million tons of machine-made sand, 1.2 million tons of dry mixed mortar, 1 million cubic meters of concrete and other building materials.
This 1400tph production line is configured with 3 sets of vibrating screen running side by side the efficiency of which is 50% higher than that of combined screening of two screens.
