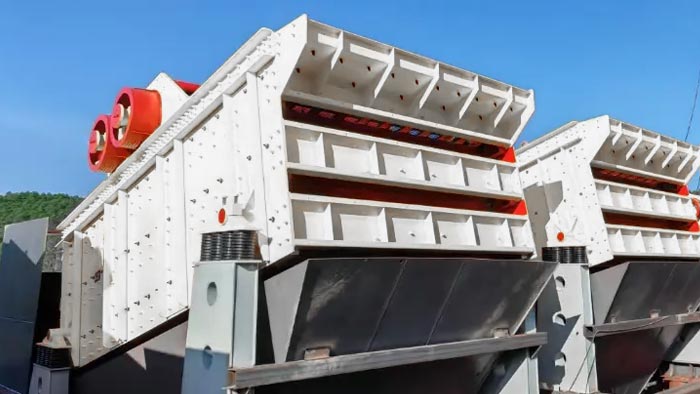

Sand Aggregate IndustryComprehensive Service ProviderSand Aggregate IndustryComprehensive Service ProviderTES Series Triaxial Elliptical Vibrating Screen
| Model | 2TES2460 | 3TES2460 |
| Screen Deck | 2 | 3 |
| Screen Mesh | Woven wire cloth | Woven wire cloth |
| Screen Specification | 2.4×6.0 m | 2.4×6.0 m |
| Screen Area | 14.4 m² | 14.4 m² |
| Max. Feeding Size | 150 mm | 150 mm |
| Double Amplitude | 14–18 mm | 14–18 mm |
| Vibrating Frequency | 645–875 r/min | 645–875 r/min |
| Capacity | 240–462 t/h | 240–462 t/h |
| Motor Power | 45 kW | 45 kW |
*Note: The processing capacity of the TES2460 Vibrating Screens may vary with different materials and feeding sizes.
This stone crushing plant is upgrading into an eco-friendly production line after 6-year using.
This 600tph production line basically configured with PCZ1615 heavy hammer crusher ZG1538 feeder 3YKZ2670 vibrating screen*2 sets，PC1213 hammer crusher 2YKZ2670 vibrating screen*2 sets.
It’s seen the gravel aggregate production line has large scale which can meet the customer requirement for large capacity. The dust collectors will be configured later for environment protection.
