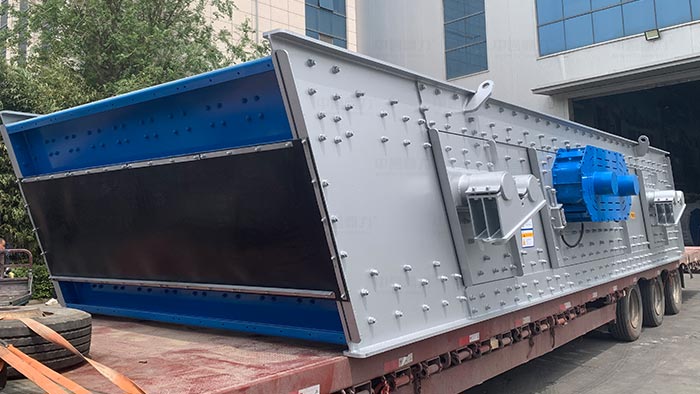

Sand Aggregate IndustryComprehensive Service ProviderSand Aggregate IndustryComprehensive Service ProviderYKJ Series Vibrating Screen
| Model | 2YKJ1860 | 3YKJ1860 |
| Layer | 2 | 3 |
| Screen specifications(mm×mm) | 1800×6000 | |
| Max.feed size(mm) | 250 | |
| Vibrating Frequency(r/min) | 820 | |
| Double Amplitude(mm) | 8–10 | |
| Angle(°) | 20 | |
| Capacity(t/h) | 50–300 | |
| Power(kW) | 18.5 | 22 |
| Length(mm) | 6780 | |
| Width(mm) | 2520 | |
| Height(mm) | 1450 | 1850 |
| Installation dimensions(mm) | 6060×2520×3550 | 6060×2520×3980 |
*Note: The processing capacity of the YKJ1860 Vibrating Screens may vary with different materials and feeding sizes.
As a 600tph fine gravel production line in Mangao Huishui Guizhou it can produce about 1000 ton finished stone which is mainly configured with ZG1550 vibrating feeder PCZ1615 heavy hammer crusher*2 ZSJ1218 dual sand shaping machine.
Basic configuration ：We fully consider the matching adaption of material quality and design process of production line through equipment model selection and reasonable configuration.
We find stone firstly have first-stage crushing and then fine crushing to get the fine finished materials. It expressed the principle of harmonious coexistence with environment with clean production environment and less pollution.
