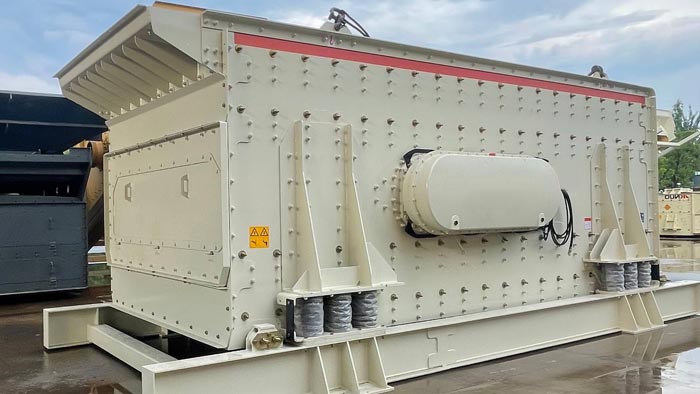

Sand Aggregate IndustryComprehensive Service ProviderSand Aggregate IndustryComprehensive Service ProviderZTS Series Three-shaft Elliptical Vibrating Screen
| Model | 2ZTS2260 | 3ZTS2260 |
| Screen specifications (mm×mm) | 2200×6000 | 2200×6000 |
| Layer | 2 | 3 |
| Max.feed size(mm) | 150 | |
| Vibrating Frequency(r/min) | 680 | |
| Amplitude(mm) | 12-15 | |
| Angle(°) | 0-5 | |
| Capacity(t/h) | 110-440 | 100-390 |
| Power(kW) | 30 | 37 |
| verall Dimension L×W×H (mm) | 6870×3060×1565 | 6870×3060×2010 |
*Note: The processing capacity of the ZTS2260 Vibrating Screens may vary with different materials and feeding sizes.
This 1,000 tons of aggregate production line was put into operation in September 2018, using DLPCZ1820 heavy hammer crusher, DLPC1220 plastic hammer crusher, DL3YKZ3070 vibrating screen and other sets of mine production equipment, the introduction of a complete set of mine intelligent management system.
By selecting reasonable equipment model the production line will greatly improve its capacity. The equipment applied for the production of customers is the most suitable through selection and configuration of professional technician.
From this picture PCZ1308 hammer crusher of Xinxiang Dingli as the secondary crushing machine can crush and shape stone into high quality finished material with higher value than other ordinary stone.
