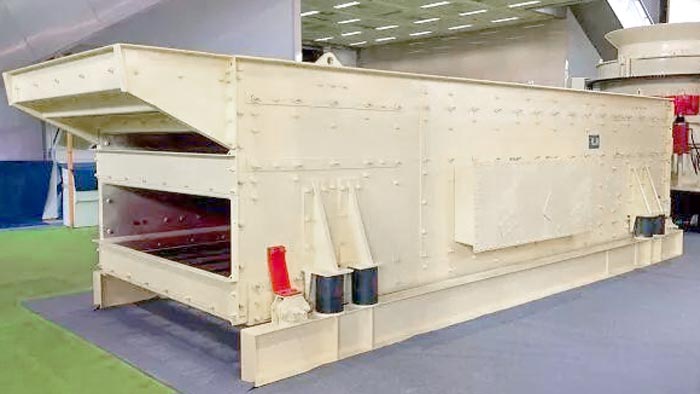

Sand Aggregate IndustryComprehensive Service ProviderSand Aggregate IndustryComprehensive Service ProviderZTS Series Three-shaft Elliptical Vibrating Screen
| Model | 2ZTS2460 | 3ZTS2460 |
| Screen specifications (mm×mm) | 2400×6000 | 2400×6000 |
| Layer | 2 | 3 |
| Max.feed size(mm) | 150 | |
| Vibrating Frequency(r/min) | 680 | |
| Amplitude(mm) | 12-15 | |
| Angle(°) | 0-5 | |
| Capacity(t/h) | 120-480 | 110-430 |
| Power(kW) | 30 | 37 |
| verall Dimension L×W×H (mm) | 6870×3260×1565 | 6870×3260×2010 |
*Note: The processing capacity of the ZTS2460 Vibrating Screens may vary with different materials and feeding sizes.
Our companys technical staffs according to the customers request develop the entire production line of stone production process and select the required types of equipment and its supporting parts.
2500 Ton/Day Gravel Aggregate Production Process Configuration List Equipment Model Unit(s) Vibrating Feeder ZG1038 1 Heavy Hammer Crusher PCZ1510 1 Hammer Crusher XPC0808 1 Vibrating Screen 2YKQ2060 2 The bulk limestone is evenly fed into
Work Process The raw materials (bulk limestone)are first sent by the ZGC vibrating feederto PCZ1615 heavy hammer crusher for primary crushing. Then the materialsare processed by two sets of 3YKZ2470 vibrating screen for gradation. Those with qualifie
