Sand Aggregate IndustryComprehensive Service ProviderSand Aggregate IndustryComprehensive Service ProviderIn the field of material processing, cone crushers and vertical shaft impact crushers (VSI) are two commonly used types of equipment. Both have distinct features, advantages, and applications. Understanding these differences is crucial for selecting the right machinery for your project. This article provides an in-depth comparison between cone crushers and VSI crushers, helping you determine which is better suited for your specific needs.

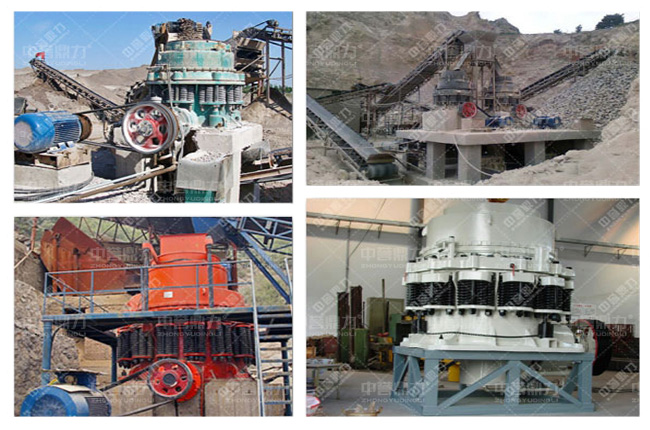

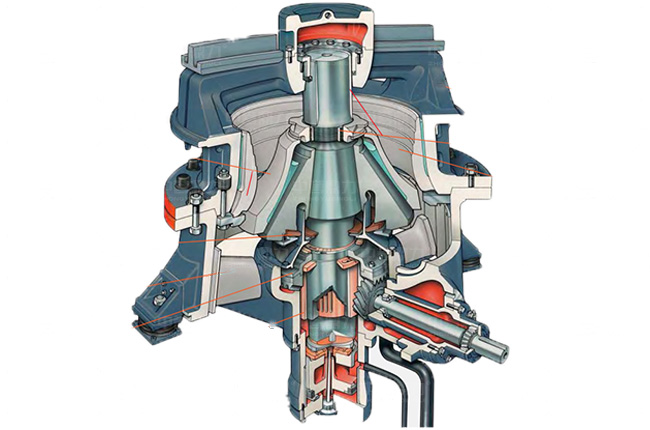

Cone crushers are a type of compression crusher used to reduce large rocks and ores into smaller, more manageable pieces. They operate by compressing the material between a moving piece of steel (the mantle) and a stationary piece of steel (the bowl). This crushing action is achieved through a cone-shaped design, hence the name. Cone crushers are widely used in mining, aggregate production, and recycling applications due to their efficiency and ability to handle tough, abrasive materials.

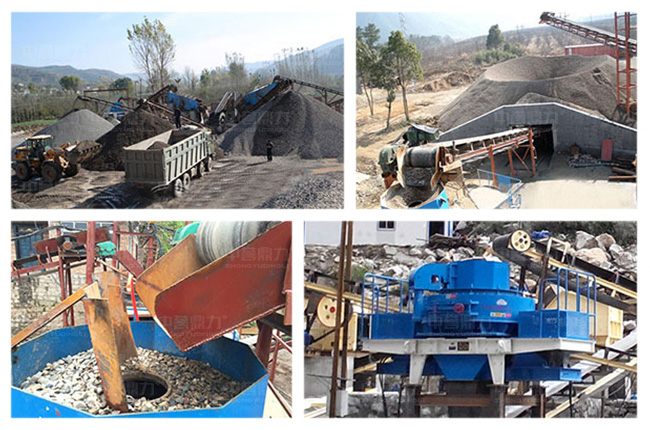

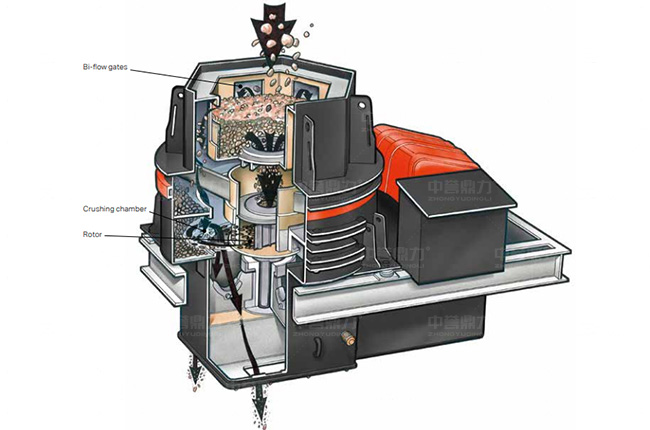

Vertical shaft impact (VSI) crusher can be likened to a "stone pump" that operates similarly to a centrifugal pump. The material is fed through the center of the rotor, where it is accelerated to high speed before being discharged through openings in the rotor's periphery. The material is crushed as it hits the outer body at high speed and due to the rock-on-rock action. VSIs are primarily used in the production of fine materials, including sand, with a good cubic shape. These crushers are ideal for creating well-shaped particles, making them particularly useful in applications requiring high-quality finished products.
| Feature | Cone crusher | VSI crusher |
| Working Principles | Compression | High-speed impact force |
| Feed Size | Coarser | Finer to very fine feed size |
| Product Size | Coarser | Finer |
| Material Suitability | Granite, basalt, quartz | Limestone, softer stones, sand production |
| Efficiency | Highly efficient in processing hard, abrasive materials | Efficient for producing fine, high-quality aggregates |
| Output Quality | More uniform and cubical | Finely crushed, high-quality material |
Durability: Cone crushers are robust and have a long operational life.
Efficiency: Highly efficient at crushing hard, abrasive materials.
Product Quality: Produce a uniform and high-quality output, ideal for aggregate production.
Flexibility: VSI crushers can be used for a wide range of materials and applications.
High-Quality Output: Produce high-quality, finely crushed material with a cubical shape.
Versatility: Suitable for producing sand and fine aggregates for construction and road base.
Cost: Higher initial and operational costs.
Complexity: Require skilled operation and maintenance.
Maintenance: Regular maintenance and wear part replacement are necessary.
Wear and Tear: VSI crushers experience higher wear rates due to the high-speed impact forces.
Maintenance: Frequent maintenance and replacement of wear parts.
Cost: Higher operational costs due to wear part replacement.
Preferred Technology: Cone Crusher.
Application: Production of coarse sand (10-0 mm or 0-6 mm).
Characteristics: High reduction ratio required, suitable for contractors using portable equipment to generate a variety of products with minimal equipment.
Applicable Technology: VSI (Vertical Shaft Impact Crusher) and/or Cone Crusher.
Application: Production of coarse sand but with finer grain size specifications (6-0 mm).
Characteristics: Reduction ratio is not very high, process configuration needed to efficiently achieve the final goal.
Applicable Technology: VSI Crusher.
Application: Production of fine sand with fine grain size specifications (4-0 mm or 2.4-0 mm).
Characteristics: Reduction ratio is even lower, process configuration needed to efficiently achieve the final goal.
Advantages: This may be an ideal application for producing high-quality manufactured sand, especially when the customer desires a product that meets low FM values, has good particle shape, and conforms to particle size specifications.
Choosing between a cone crusher and a vertical shaft impact crusher (VSI) depends on the specific needs of your project. Cone crushers are ideal for hard, abrasive materials and offer high efficiency and durability. VSI crushers, on the other hand, provide flexibility, produce high-quality, finely crushed material, and are suitable for producing sand and fine aggregates. By understanding the key differences, advantages, and drawbacks of each type of crusher, you can make an informed decision that ensures the success of your project.
