CZS66B

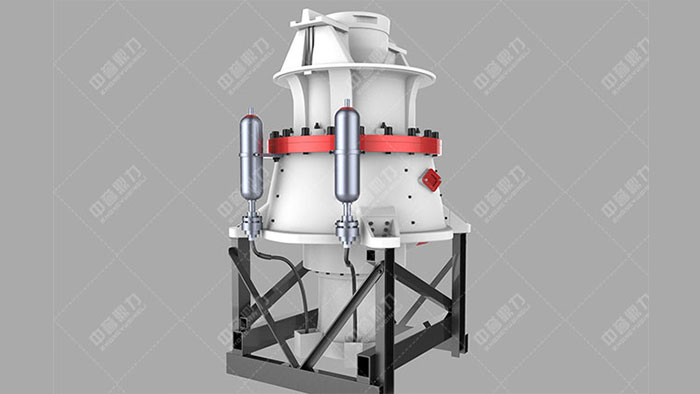

CZS66B Cone Crusher: Versatile Applications and Key Maintenance Considerations

The CZS66B cone crusher is a powerful and adaptable piece of equipment that plays a significant role in a wide range of industrial operations. Understanding its most suitable applications and being aware of its key wear parts are essential for users to make the best use of it and ensure its smooth operation.

Suitable Applications

F Cavity: For High-Quality Aggregate Production

The F cavity of the CZS66B, with a maximum feed size of 178 mm and a discharge opening adjustment range of 16 - 38 mm, is well-suited for producing high-quality aggregates. In applications like manufacturing aggregates for high-performance concrete used in large infrastructure projects, such as bridges, dams, or high-rise buildings, its ability to handle relatively smaller to moderately sized feed materials and control the output size precisely is crucial. With a processing capacity of 181 - 327 tons per hour, it can supply substantial amounts of consistent-quality aggregates to meet the demands of these large-scale construction endeavors.

M Cavity: Ideal for Medium to Heavy-Duty Crushing in Construction

The M cavity, which can accommodate a maximum feed size of 205 mm, is a great fit for medium to heavy-duty crushing tasks in the construction industry. When it comes to producing crushed stones for road construction, railway ballast, or concrete foundations in commercial and industrial complexes, its 22 - 51 mm discharge opening adjustment range and a processing capacity of 25 - 417 tons per hour allow it to efficiently convert larger rocks into the appropriate sizes. This ensures the strength and durability of the constructed structures and infrastructure.

C Cavity: Supporting Large-Scale Mining and Quarrying

For the C cavity, capable of taking in materials up to 228 mm, it is a key asset in large-scale mining and quarrying operations. In mining, where large chunks of ore need to be broken down for further processing, and in quarrying to produce various sizes of stones for different construction uses, its 25 - 64 mm discharge opening adjustment range and a processing capacity of 299 - 635 tons per hour enable it to handle massive volumes of materials effectively. It streamlines the initial crushing process and provides a continuous supply of crushed products for subsequent refinement or use.

EC Cavity: Optimizing High-Volume and Heavy Material Processing

The EC cavity, with a maximum feed size of 313 mm, is designed specifically for handling extremely large and heavy materials in high-volume processing scenarios. In large mining operations dealing with massive ore deposits or in heavy-duty quarrying where oversized rocks are common, its 38 - 64 mm discharge opening adjustment range and a processing capacity of 431 - 645 tons per hour come into play. It can rapidly reduce these huge chunks of materials into more manageable sizes, enhancing the overall productivity of the operation.

Key Wear Parts and Their Management

Mantle and Concave Liner

The mantle and concave liner are among the most critical wear parts of the CZS66B cone crusher. They are constantly in contact with the materials being crushed and endure significant abrasion and impact forces. Regular inspection of these components is vital. Check for signs of uneven wear, deep grooves, or thinning of the material. Depending on the usage intensity, it's recommended to replace them when the wear reaches a certain level to maintain the crusher's crushing efficiency and the quality of the output. Typically, these parts might need replacement after several thousand tons of material have been processed, but this can vary based on the hardness of the materials being crushed.

Bearings

Bearings play a crucial role in ensuring the smooth rotation of the moving parts within the crusher. They are subjected to heavy loads during operation and can wear out over time. Monitor for any unusual noises, vibrations, or signs of overheating, which could indicate bearing problems. Adequate lubrication is essential for their proper functioning and longevity. Follow the manufacturer's recommended lubrication schedule and use high-quality lubricants. If a bearing shows signs of damage or excessive wear, it should be replaced promptly to prevent further damage to other components of the crusher.

Other Wear Parts

Additionally, components like the crushing chamber liners, shaft sleeves, and seals also experience wear and tear. Keep an eye on these parts during routine inspections. Worn seals can lead to leakage of lubricants or ingress of dust and debris, which can affect the performance of the crusher. Replace any damaged or worn parts in a timely manner to maintain the overall integrity and performance of the CZS66B cone crusher.

Conclusion

The CZS66B cone crusher offers diverse applications across different industries, and being knowledgeable about its wear parts and how to manage them is crucial for its long-term and efficient operation. By understanding these aspects, users can optimize its usage and ensure it continues to contribute effectively to their industrial processes.
