Sand Aggregate IndustryComprehensive Service ProviderSand Aggregate IndustryComprehensive Service ProviderCone Crusher
| Model | DLDH660 | |||
| Cavity Type | H1 (Fine) | H2 (Medium-Fine) | H3 (Ultra-Fine) | H4 |
| Feed Opening | 275 mm | 215 mm | 175 mm | 85 mm |
| Max Feed Size | ≤ 220 mm | ≤ 170 mm | ≤ 140 mm | ≤ 70 mm |
| CSS Range | ≤ 32 mm | ≤ 29 mm | ≤ 29mm | ≤ 19 mm |
| Capacity | 177 - 662 t/h | 209 - 643 t/h | 162 - 552 t/h | 172 - 325 t/h |
| Motor Power | 315 kW | |||
*Note: The processing capacity of the DLDH660 cone crusher may vary with different materials and feeding sizes.
The project is under EPC general contract construction of Zhongyu and Denli, and tailor-made production line scheme for customers.
This production line with relatively small capacity is configured with PCZ 1512 heavy hammer crusher. Without adoption of secondary crusher it not only reduces equipment investment but also saves the cost for repair and maintenance.
In the cement crushing production line limestone accounts for a very large proportion (even over 50%) among various kinds of raw material.

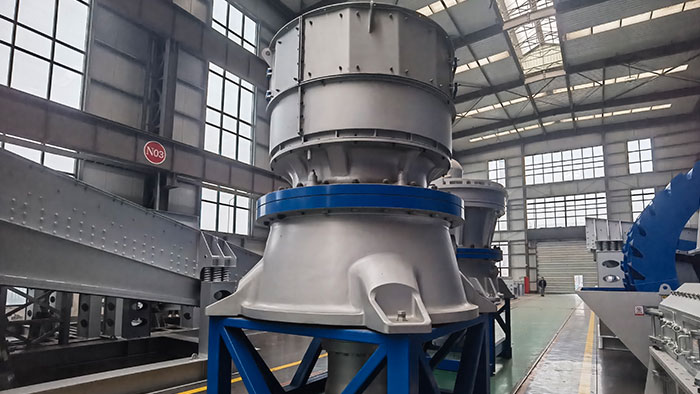

The DLDH660 Multi-Cylinder Hydraulic Cone Crusher is a high-capacity machine designed for fine and medium-fine crushing applications. It is suitable for processing a variety of materials, including iron ore, basalt, and limestone. With a motor power of 315kW, the DLDH660 can handle capacities ranging from 177 to 662 tons per hour, making it an excellent choice for large-scale operations.
Layered Crushing Technology: Produces high-quality, uniformly shaped products.
Smooth and Quiet Operation: The spiral bevel gear transmission system ensures minimal noise and vibration.
Hydraulic Overload Protection: Protects the machine from damage due to excessive load.
Dust Sealing System: Prevents dust and debris from entering the lubrication system, enhancing durability.
Advanced Control System: Provides user-friendly operation and real-time monitoring, ensuring efficient and reliable performance.
