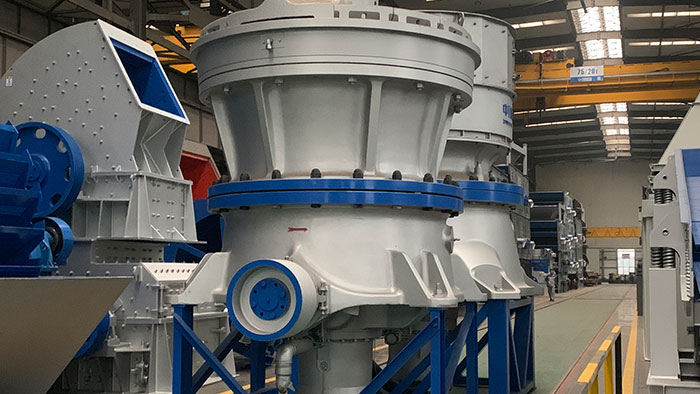

DLDS430

The DLDS430 Single Cylinder Hydraulic Cone Crusher is a high-performance crushing equipment developed by Zhongyu Dingli based on years of industry experience and technical accumulation. This equipment is suitable for the cement, building materials, metal, and non-metallic mineral industries, particularly for processing iron ore, basalt, limestone, and other minerals with hardness below 16. The DLDS430 has a wide range of production capacities, from 125 to 345 tons per hour, making it suitable for various production scales.

The core advantage of the DLDS430 lies in its unique layered crushing technology. Compared to traditional cone crushers, the DLDS430 uses advanced layered crushing principles, which not only increase production and efficiency but also optimize the shape of the product, ensuring that the finished material is cubic. This design helps reduce energy consumption in subsequent processing and improves the overall economic benefits of the production line.

The DLDS430 is equipped with a spiral bevel gear transmission system, which offers higher load-bearing capacity, smoother operation, and lower noise levels. Additionally, the equipment features an overload protection function, providing a higher pressure margin during normal operation to ensure the reliability of the hydraulic system. When the machine is overloaded, the system will promptly issue an alarm signal to prevent damage to the equipment.

To further enhance the reliability and lifespan of the equipment, the DLDS430 uses a U-T dust seal system and positive pressure dust prevention device, effectively preventing lubricant contamination and protecting the bearings from damage. The bearing lubrication design employs an oil wedge design, forming a lubricating oil film between the shaft and bearing, reducing direct friction, lowering heat generation, and extending the life of the bearings.

The DLDS430 also features a hydraulic and lubrication integrated design, with the hydraulic station and lubrication station designed as one unit, saving installation space and facilitating operation and maintenance. The optimized oil tank capacity uses only one-third of the oil compared to similar hydraulic lubrication stations, significantly reducing daily production costs.

Intelligence is a major highlight of the DLDS430. The equipment is equipped with an automatic control system that provides multiple operating modes, allowing users to flexibly choose according to their production needs. The system continuously monitors the actual load inside the equipment, displaying various operating parameters in real-time. When the liner wears out and becomes unusable, the control panel automatically displays an alarm signal to facilitate timely maintenance.

In summary, the DLDS430 Single Cylinder Hydraulic Cone Crusher stands out with its high-efficiency crushing capability, stable performance, and intelligent control system, making it the preferred choice for many industry users.
