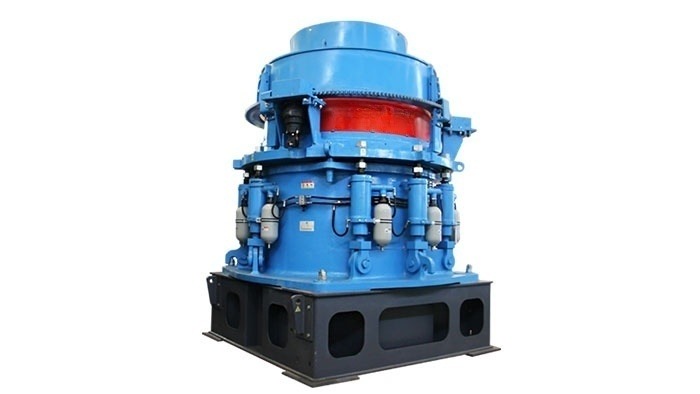

GPY300 Cone Crusher: Powerful Performance and Applications

1. Introduction

In the fields of ore crushing and construction aggregate production, the GPY300 cone crusher stands out with its excellent performance and has become a key equipment choice for many enterprises. It can efficiently process ores and rocks of various hardness and crush them into particle size specifications that meet different industrial needs.

2. Performance Parameters

The GPY300 cone crusher has a powerful power configuration with a motor power ranging from 200 to 250kW, providing sufficient energy for crushing operations. Its feed size range is wide, with a maximum of 300mm, which allows it to handle larger raw materials and reduces the workload of pre-treatment. In terms of discharge size, by adjusting the discharge opening, it can be precisely controlled between 10 and 50mm, meeting the requirements of product particle size from coarse crushing to medium crushing. The production capacity is outstanding, with the ability to process 100 - 450 tons of materials per hour depending on different material characteristics and crushing chamber settings, showing high production efficiency and obvious advantages in large-scale production scenarios.

3. Structural Features

Sturdy Frame

Made of high-quality cast steel and through precise design and manufacturing processes, the frame has extremely high strength and stability. It can withstand the huge impact and vibration forces during the crushing process, ensuring that the equipment remains structurally intact under long-term and high-intensity working environments without deformation or damage, laying a solid foundation for the stable operation of the equipment.

Advanced Crushing Chamber Design

The crushing chamber is optimized based on the laminating crushing principle. This design enables the materials to form an ideal material layer distribution in the crushing chamber. The materials are squeezed and ground against each other rather than relying solely on a single impact between the crushing parts and the materials. Such a crushing method not only improves crushing efficiency and reduces energy consumption but also makes the crushed product have a more uniform particle size and a more regular shape, which is beneficial for subsequent processing and use.

Efficient Transmission System

The transmission system consisting of a motor, pulley, coupling, transmission shaft and eccentric sleeve operates smoothly and efficiently. The power provided by the motor is accurately transmitted to the transmission shaft through the pulley and coupling and then drives the eccentric sleeve to rotate. The rotational motion of the eccentric sleeve is converted into the eccentric gyratory motion of the crushing cone, thereby realizing the crushing action of the materials. The entire transmission process has low energy loss and can ensure the continuous and stable progress of the crushing operation. Moreover, the reliability of the transmission system is high, reducing the equipment downtime due to faults.

Intelligent Hydraulic and Lubrication Systems

The hydraulic system in the GPY300 cone crusher undertakes several important functions. On the one hand, it can precisely adjust the size of the discharge opening. Operators can quickly adjust the discharge opening according to production requirements on the console to meet the production requirements of different particle size products. On the other hand, the hydraulic system has an iron passing protection and chamber clearing function. When an uncrushable foreign object enters the crushing chamber, the hydraulic system can quickly sense the pressure change, automatically adjust the position of the crushing cone to make it retreat and avoid equipment damage. After the foreign object is discharged, it can quickly return to the normal working state. The lubrication system provides continuous and stable lubrication for each moving part of the equipment. It can ensure that components such as bearings, gears and transmission shafts reduce friction and wear during operation and extend the service life of the equipment. The lubrication system is also equipped with oil temperature and oil pressure monitoring devices. Once an abnormality is detected, it can send an alarm in time to remind the operator to perform maintenance.

4. Application Fields

Mining

In metal and non-metal mines, the GPY300 cone crusher can perform medium and fine crushing of the mined ores. For example, in metal mines such as iron ore, copper ore and gold ore, it further crushes the coarsely crushed ores into a particle size suitable for the beneficiation process, improving the beneficiation efficiency and metal recovery rate. In non-metal mines such as limestone, granite and quartzite, it can produce different specifications of construction stone and industrial raw materials to meet the needs of the construction and chemical industries.

Construction Material Production

It is an ideal equipment for producing high-quality construction aggregates. Whether it is for producing concrete aggregates or asphalt concrete aggregates, the GPY300 cone crusher can crush the stone into the required particle size and shape. The aggregates produced have good strength and stability and can improve the quality and durability of the building structure, and are widely used in infrastructure construction projects such as high-rise buildings, bridges and roads.

Other Industrial Fields

In industries such as chemical and power, for some process links that require crushing of solid materials, the GPY300 cone crusher can also play an important role. For example, in the chemical industry, it crushes some ore raw materials for pre-treatment to make subsequent chemical reactions more fully carried out. In the power industry, it crushes fuels such as coal to optimize combustion efficiency.

5. Advantage Summary

With its excellent performance parameters, exquisite structural design and wide application fields, the GPY300 cone crusher brings many advantages to industrial production. It is efficient, stable and energy-saving. It can realize large-scale material crushing operations while ensuring product quality, improving the production efficiency and economic benefits of enterprises. At the same time, its intelligent hydraulic and lubrication systems and sturdy and durable structure reduce the maintenance cost and failure rate of the equipment and extend the service life of the equipment, providing a strong guarantee for the long-term and stable production of enterprises.
