GPY500

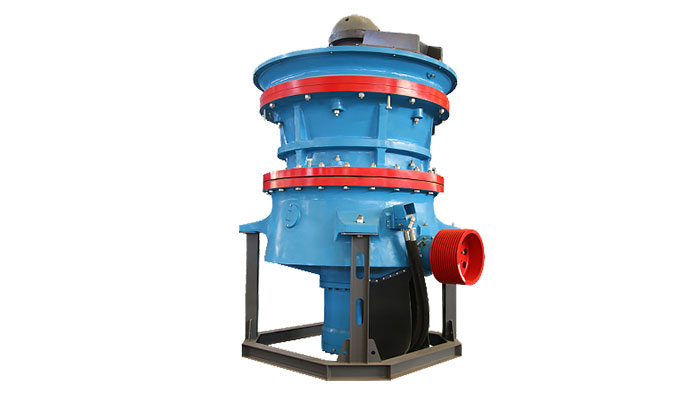

GPY500 Cone Crusher: A Powerful Crushing Tool

In the fields of ore processing and building material production, the performance of crushers directly affects production efficiency. The GPY500 cone crusher stands out with its advanced design and excellent parameter settings, becoming one of the remarkable equipment in the industry.

I. Overview of Core Parameters

The GPY500 cone crusher is equipped with a 315kW motor, providing abundant power for the crushing operation. Its feed size can reach ≤275mm, enabling it to handle larger块状 raw materials and reduce pretreatment costs. The discharge size is<51mm, which can accurately meet the product specifications required for various productions. The production capacity ranges from 157 to 657t/h, with good yield adaptability, and can flexibly respond to different production scales and process requirements.

II. Analysis of Key Wearing Parts

1. Mantle and Concave

As key components directly in contact with materials, the mantle and concave bear huge impact and friction forces during the crushing process. They are usually made of high manganese steel or new alloy materials. Relying on the characteristic of high manganese steel to form a hardened layer under impact, as well as the high wear resistance and toughness of alloy materials, the service life is ensured under harsh working conditions. However, due to the severe working environment, they need to be regularly inspected and replaced according to the production intensity and material hardness. Generally, the replacement cycle is from several months to one year.

2. Liners

The liners are distributed inside the crushing chamber and play an important role in protecting the machine body and guiding the crushing path of materials. The scouring and extrusion of materials are likely to cause wear of the liners. High-quality rubber liners or alloy liners can effectively slow down the wear rate. The rubber liner has both buffer, noise reduction and wear resistance properties, while the alloy liner is outstanding in hardness. Compared with the mantle and concave, the replacement cycle of the liners is slightly longer, but the wear condition still needs to be closely monitored, and timely maintenance and replacement are required to ensure the stable operation and crushing effect of the equipment.

3. Bearings

As a key transmission component of the crusher, the bearings support the smooth operation of rotating parts such as the eccentric shaft and bear large radial and axial loads. In a working environment with dust and high temperature, the lubrication and sealing of the bearings are crucial. Once there is a problem with lubrication or sealing, it is very easy to cause wear, overheating or even damage. Therefore, regular maintenance of the bearing lubrication system, ensuring the integrity of the seal, and timely replenishment of high-quality lubricating oil are the keys to extending the service life of the bearings. Under normal maintenance conditions, the service life of the bearings can reach several years, and under abnormal working conditions, they may need to be replaced in advance.

III. Application Advantages in Building Aggregate Production

At present, with the strong demand for building aggregates, the GPY500 cone crusher performs excellently on the building aggregate production line. It can crush granite, basalt and other rock raw materials into various specifications of aggregates, such as 0-5mm, 5-10mm, 10-20mm, etc., accurately meeting the needs of various construction projects. Taking the production of aggregates for expressways as an example, this crusher can precisely control the discharge particle size according to the project standards, stably produce high-quality aggregates, provide a solid material guarantee for the construction of the base layer, sub-base layer and pavement layer of expressways, ensure the project quality, and at the same time, the stable yield also ensures the continuous supply of building aggregates, effectively promoting the development of infrastructure construction.

In conclusion, the GPY500 cone crusher shows strong competitiveness in the industry with its reasonable parameter configuration, reliable wearing part performance and excellent performance in building aggregate production. Enterprises' in-depth understanding of its wearing part characteristics and application advantages helps to optimize the production process, improve efficiency and move forward steadily in the market. With the continuous progress of technology, the GPY500 cone crusher is expected to be continuously upgraded, injecting new vitality into the development of the industry.
