HCC84B

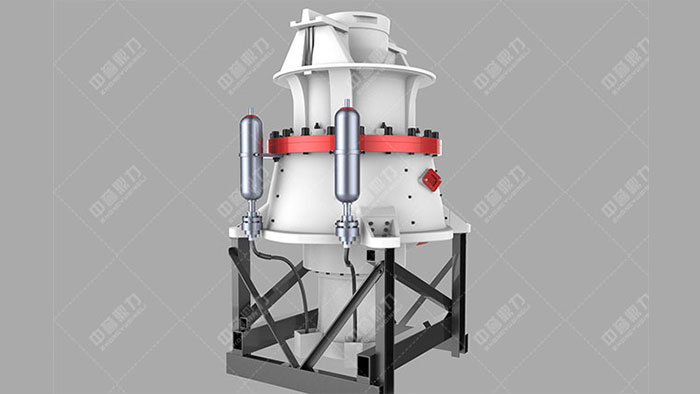

HCC84B Cone Crusher: High - Capacity Crushing for Industrial Excellence

In the realm of industrial crushing, the HCC84B Cone Crusher emerges as a high - performing solution, offering a diverse range of cavity types to meet different production requirements. Let's delve into the details of its features and performance.

Multiple Cavity Types for Varied Crushing Needs

The HCC84B Cone Crusher is equipped with four distinct cavity types: Fine Type, Medium Type, Coarse Type, and Extra Coarse Type. Each cavity type is tailored to specific crushing applications, ensuring optimal efficiency and productivity.

Fine Type Cavity: Precision Fine - Grained Output

The Fine Type cavity is engineered for applications demanding fine - grained materials. With a maximum feed size of 236mm and a discharge range of 19 - 38mm, it can produce high - quality fine aggregates. The processing capacity of this cavity ranges from 392 to 748 tons per hour. It is suitable for industries such as high - end construction, where fine - graded materials are crucial for product quality.

Medium Type Cavity: Balanced Crushing Performance

When a balance between particle size and production volume is required, the Medium Type cavity is the ideal choice. It can handle a feed size of up to 284mm and has a discharge range of 25 - 51mm. The processing capacity lies between 626 and 1028 tons per hour. This cavity type is commonly used in general quarrying and recycling operations, where a moderately sized output is needed.

Coarse Type Cavity: Heavy - Duty Coarse Crushing

The Coarse Type cavity is designed for heavy - duty applications. It can accept a maximum feed size of 314mm and has a discharge range of 31 - 64mm. With a processing capacity ranging from 813 to 1308 tons per hour, it is well - suited for primary and secondary crushing in large - scale mining and ore processing. It can efficiently break down large rocks into more manageable sizes.

Extra Coarse Type Cavity: Handling Massive Materials

For dealing with extremely large materials, the Extra Coarse Type cavity is the most appropriate option. It can handle feed sizes up to 391mm and has a discharge range of 38 - 64mm. The processing capacity of this cavity is in the range of 906 to 1402 tons per hour. This makes it perfect for the initial crushing stage in major mining projects, where large boulders need to be rapidly reduced in size.

Powerful Motor and Sturdy Structure

The HCC84B Cone Crusher is powered by a 315kW motor, providing sufficient power to drive the crushing process across all cavity types. This high - powered motor ensures consistent and efficient performance, even when processing hard and abrasive materials. The equipment weighs 88 tons and has dimensions of 4613×3302×4638mm. Its substantial weight and well - engineered structure contribute to its stability during operation, minimizing vibrations and ensuring a long service life.

Conclusion

The HCC84B Cone Crusher, with its multiple cavity types and high - capacity performance, is a versatile and reliable solution for industrial crushing. Whether it's fine - grained production, balanced output, or heavy - duty coarse crushing, this crusher can meet the diverse needs of different industries. Its powerful motor and sturdy structure make it a valuable asset for any large - scale crushing operation.
