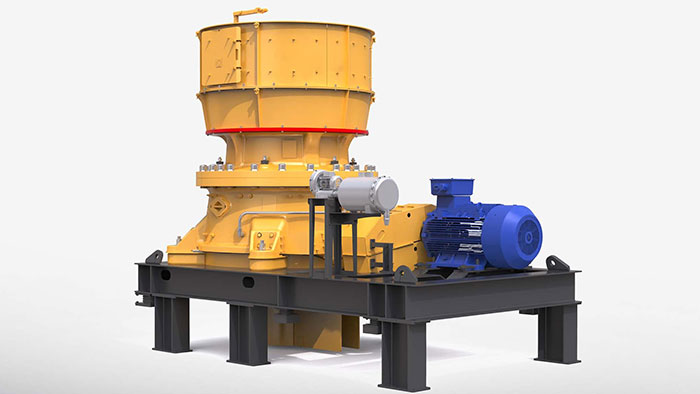

Sand Aggregate IndustryComprehensive Service ProviderSand Aggregate IndustryComprehensive Service ProviderCone Crusher
| Model | HP400 | |
| Head diameter | 1,320 mm | 52" |
| Power | 315 kW | 400 hp |
| Total crusher weight | 25,600 kg | 56,400 lbs |
| Feed opening | 304 mm | 12" |
| Capacity up to | 630 Mtph | 700 Stph |
Cavity selection guide
| Standard | Short head | |||
| Cavity | Minimum setting "A"1 | Feed opening "B"2 | Minimum setting "A"1 | Feed opening "B"2 |
| Extra fine | - | - | 6 mm (0.24") | 52 mm (2.05") |
| Fine | 14 mm (0.55") | 111 mm (4.37") | 6 mm (0.24") | 51 mm (2.00") |
| Medium | 20 mm (0.79") | 198 mm (7.80") | 8 mm (0.31") | 52 mm (2.05") |
| Coarse | 25mm (0.98") | 252 mm (9.92") | 10 mm (0.39") | 92 mm (3.62") |
| Extra coarse | 30 mm (1.18) | 299 mm (11.77") | - | - |
*Note: The processing capacity of the HP400 cone crusher may vary with different materials and feeding sizes.
The 1200tph large stone production line configured by us for Wuxue Hubei mainly adopts PCZ1820 heavy hammer crusher PCX1220 shaping hammer crusher several sets of efficient vibrating screens and auxiliary dedusting facilities.
This production line is especially constructed for the building stone with wide application of finished material and optimized operation efficiency.
In the production site of customer it can be seen that the raw materials of sand making are mainly the stones with large grain size and through being crushed these stones are finally used for sand making.

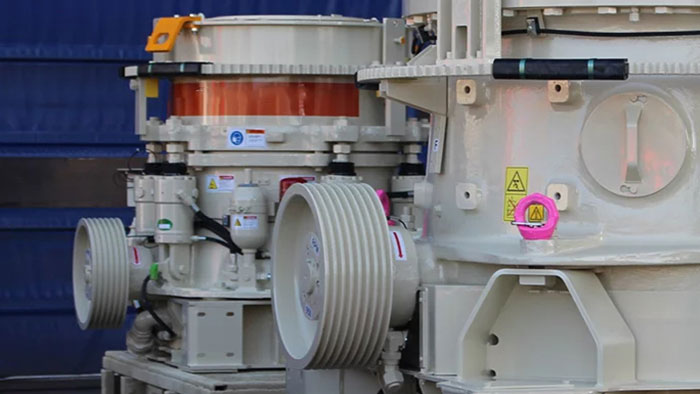

In industries such as mining, building materials, and metallurgy, the material crushing process is a crucial link, and the performance of the crusher directly affects production efficiency and product quality. The HP400 hydraulic cone crusher, with its unique design and excellent performance, has become a powerful tool for processing various materials with medium and above - medium hardness.
The HP400 is equipped with two cavity types, the C - cavity and the F - cavity, which can precisely meet the diverse requirements for material particle sizes according to different production scenarios.
The C - cavity excels in coarse and medium - sized crushing operations. With a maximum feed size of 320mm and a minimum discharge size of 16mm, in mining scenarios, for large - sized ores such as iron ore and copper ore, the C - cavity can quickly crush them into particle sizes suitable for subsequent processing. Its processing capacity is 230 - 700 tons per hour, and this high - efficiency processing capacity ensures the efficient operation of mining production, greatly improving the mining efficiency.
The F - cavity focuses on fine - crushing tasks. With a maximum feed size of 110mm and a minimum discharge size of 8mm, in the fine - processing of building materials, such as the production of high - quality construction aggregates, the F - cavity can precisely crush raw materials to particle sizes that meet strict quality standards, ensuring the excellent quality of building materials. Its processing capacity is 145 - 430 tons per hour, balancing fineness and production efficiency to meet the demand for high - quality raw materials in the construction industry.
