Specifications and models of cone crushers

ZYS84D Cone CrusherZYS84D

Nominal capacity190 - 653 t/h

Max. feed size172 mm

Motor power315 kW

ZYS84B Cone CrusherZYS84B

Nominal capacity381 - 1361 t/h

Max. feed size391 mm

Motor power315 kW

ZYS66D Cone CrusherZYS66D

Nominal capacity181 - 635 t/h

Max. feed size313 mm

Motor power250 kW

ZYS66B Cone CrusherZYS66B

Nominal capacity181 - 635 t/h

Max. feed size313 mm

Motor power250 kW

ZYS51D Cone CrusherZYS51D

Nominal capacity36 - 236 t/h

Max. feed size113 mm

Motor power160 kW

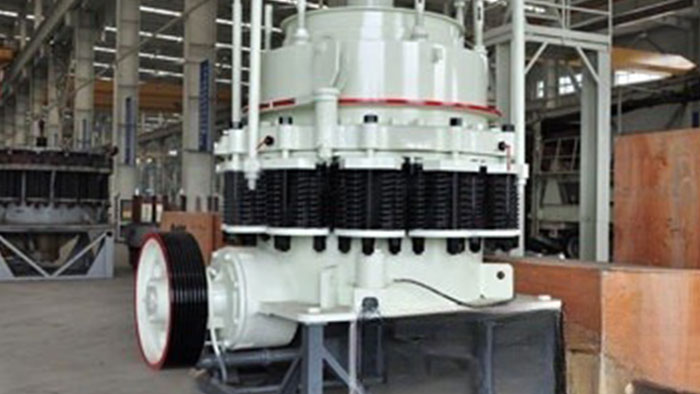

ZYS51B Cone CrusherZYS51B

Nominal capacity36 - 236 t/h

Max. feed size220 mm

Motor power160 kW

ZYS36D Cone CrusherZYS36D

Nominal capacity27 - 129 t/h

Max. feed size85 mm

Motor power75 kW

ZYS36B Cone CrusherZYS36B

Nominal capacity45 - 163 t/h

Max. feed size152 mm

Motor power75 kW

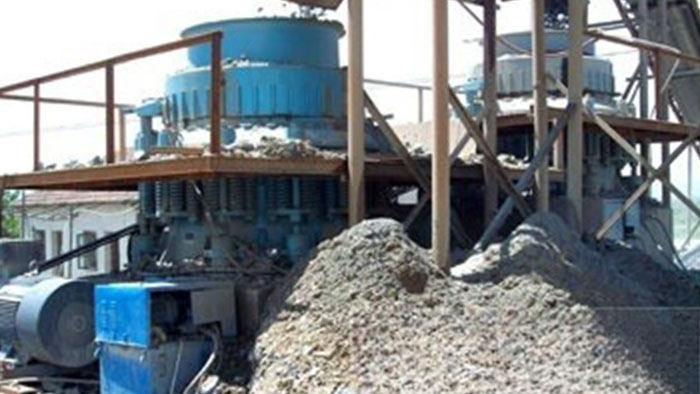

ZYC1680 Cone CrusherZYC1680

Nominal capacity180 - 725 t/h

Max. feed size267 mm

Motor power250 - 300 kW

ZYC1500 Cone CrusherZYC1500

Nominal capacity148 - 580 t/h

Max. feed size235 mm

Motor power180 - 220 kW

ZYC1380 Cone CrusherZYC1380

Nominal capacity122 - 440 t/h

Max. feed size215 mm

Motor power185 - 220 kW

ZYC1300 Cone CrusherZYC1300

Nominal capacity88 - 390 t/h

Max. feed size200 mm

Motor power132 - 160 kW
