Specifications and models of cone crushers

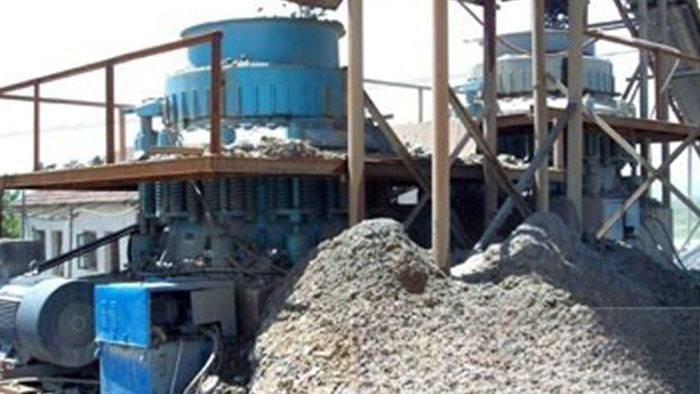

ZYC1200 Cone CrusherZYC1200

Nominal capacity60 - 260 t/h

Max. feed size180 mm

Motor power110 - 132 kW

ZYC1000 Cone CrusherZYC1000

Nominal capacity50 - 235 t/h

Max. feed size160 mm

Motor power90 - 110 kW

ZYC600 Cone CrusherZYC600

Nominal capacity20 - 76 t/h

Max. feed size95 mm

Motor power37 - 45 kW

HCC84D Cone CrusherHCC84D

Nominal capacity196 - 673 t/h

Max. feed size172 mm

Motor power315 kW

HCC84B Cone CrusherHCC84B

Nominal capacity392 - 1402 t/h

Max. feed size391 mm

Motor power315 kW

HCC66D Cone CrusherHCC66D

Nominal capacity93 - 346 t/h

Max. feed size125 mm

Motor power220 kW

HCC66B Cone CrusherHCC66B

Nominal capacity186 - 664t/h

Max. feed size313 mm

Motor power220 kW

HCC51D Cone CrusherHCC51D

Nominal capacity37 - 243 t/h

Max. feed size113 mm

Motor power160 kW

HCC51B Cone CrusherHCC51B

Nominal capacity112 - 369 t/h

Max. feed size220 mm

Motor power160 kW

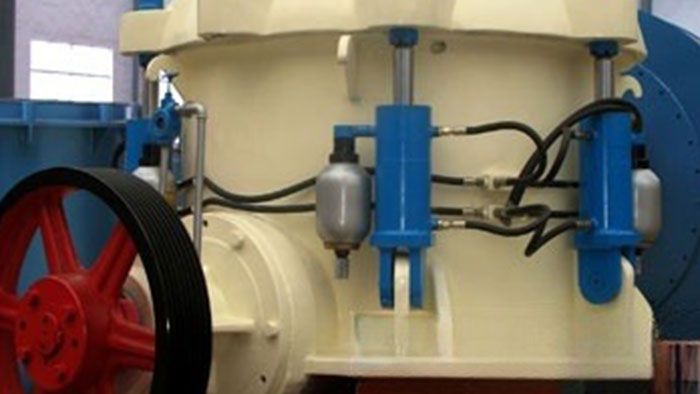

HCC36D Cone CrusherHCC36D

Nominal capacity28 - 133 t/h

Max. feed size85 mm

Motor power75 kW

HCC36B Cone CrusherHCC36B

Nominal capacity46 - 168 t/h

Max. feed size85 mm

Motor power75 kW

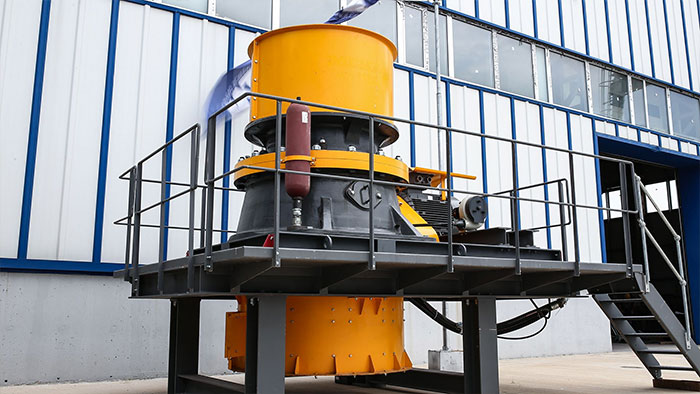

MCS300 Cone CrusherMCS300

Nominal capacity110 - 230 mtph（121 - 253 stph）

Max. feed size190 - 270 mm（7.5 - 10.6 inch）

Motor power132 kW（177 Hp）
