PSGD1310

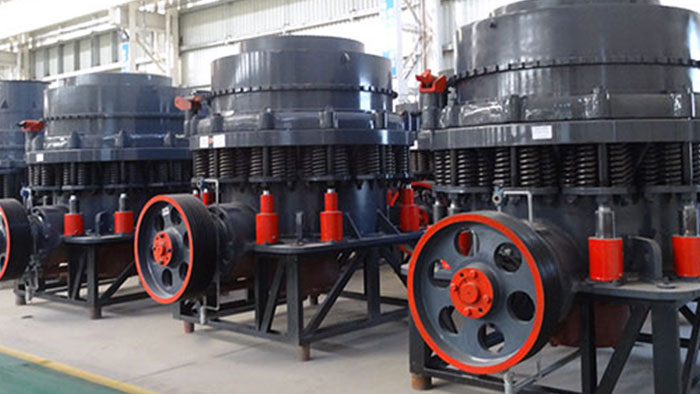

Introduction to PSGD - 1310 Crusher

Basic Information

Specification: 4.25'FT

Model: PSGD - 1310

Cavity Type: Short - head Coarse

Large - end Diameter of Crushing Cone: 1295 mm

Operating Parameters

Discharge Opening Adjustment Range: 8 - 25 mm

Feed Size at the Opening Edge with Recommended Minimum Discharge Opening: 105 mm

Maximum Feed Size: 89 mm

Processing Capacity: 109 - 227 t/h

Power of Main Motor: 160 kW

Physical Parameters

Machine Weight: 22590 kg

Overall Dimensions: 2983×1866×3156 mm

Performance Features

Robust Short - head Coarse Crushing: The short - head coarse cavity design of the PSGD - 1310 crusher equips it with the ability to handle relatively large - sized materials effectively. With a 1295 - mm large - end diameter of the crushing cone, it can generate sufficient force to break down materials into coarser particles, making it suitable for primary or secondary crushing in various industries like mining and construction material production.

Flexible Discharge Adjustment: The ability to adjust the discharge opening from 8 to 25 mm provides operators with the flexibility to control the particle size of the crushed products according to different production requirements. This adaptability allows the crusher to be used in a wide range of applications, from producing aggregates for road - building to preparing materials for further processing in industrial plants.

High - capacity Processing: The processing capacity of 109 - 227 t/h enables the crusher to handle large volumes of materials, ensuring a continuous supply of crushed products for large - scale production operations. It can meet the demands of high - throughput production lines, contributing to increased productivity.

Powerful and Reliable Power Source: Powered by a 160 - kW main motor, the crusher has a robust power supply that can maintain stable performance during continuous operation. The motor can handle the high - load conditions associated with coarse - crushing tasks, ensuring consistent and efficient crushing of materials.

Durable and Sturdy Structure: Weighing 22590 kg and having a substantial overall size, the crusher is constructed with a durable and sturdy structure. It can withstand the harsh operating conditions of coarse - crushing, including high - impact forces and vibrations, ensuring a long service life and minimizing the need for frequent maintenance.
