SCS400S

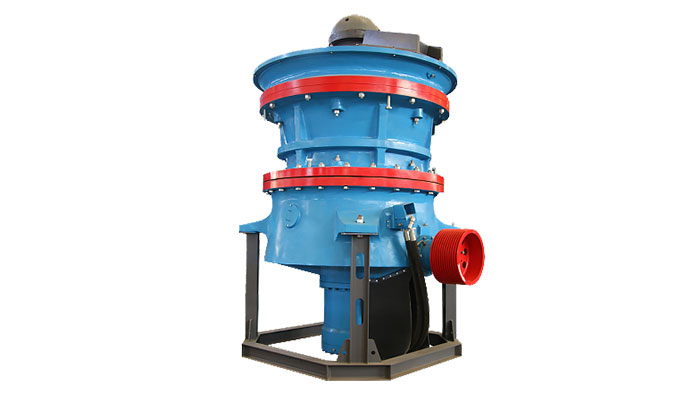

SCS400S Cone Crusher: Unleashing Exceptional Crushing Performance

The SCS400S cone crusher is a remarkable piece of engineering, designed to meet the most demanding crushing applications with outstanding performance and reliability. It has become a preferred choice in various industries, owing to its advanced features and capabilities.

I. Cavity Types and Their Specifications

This crusher is equipped with two highly efficient cavity types, namely EC and C. Each cavity type is meticulously designed to offer unique advantages in handling different materials and achieving specific output requirements.

The EC cavity presents a discharge opening range of 560 mm, and the minimum discharge opening size varies from 41 to 83 mm. This configuration allows it to process large volumes of materials with ease, providing a wide range of options for adjusting the final product size. The C cavity, with a discharge opening range of 500 mm and a minimum discharge opening size between 38 and 70 mm, offers excellent performance for a variety of crushing tasks, ensuring consistent and high-quality output.

II. Processing Capacity

The SCS400S exhibits impressive processing capacities depending on the selected cavity type. The EC cavity can manage a processing capacity within the range of 267 to 456 tons per hour, making it suitable for large-scale production operations. The C cavity has a processing capacity ranging from 225 to 333 tons per hour, providing a reliable solution for medium to high-volume crushing requirements.

III. Working Principle

The SCS400S operates on the principle of compression. As the material enters the crusher, it is directed into the crushing chamber. Here, the mantle, which rotates eccentrically within the concave liner, exerts a powerful compressive force on the material. This continuous compression action fractures the material, reducing it to the desired particle size. The adjustable discharge opening allows operators to precisely control the size of the crushed output, ensuring it meets the specific needs of the application.

IV. Advantages

1. **High Productivity**: With its substantial processing capacities and efficient crushing action, the SCS400S enables industries to achieve high production volumes in a relatively short time, enhancing overall operational efficiency.

2. **Robust Construction**: The crusher is built with high-quality materials and a sturdy design, ensuring durability and long-term reliability. Its ability to withstand the rigors of continuous operation makes it a cost-effective investment for businesses.

3. **Precision Crushing**: The combination of the adjustable discharge opening and the carefully designed cavity types allows for precise control over the particle size distribution of the crushed material. This is crucial in industries where product quality and consistency are essential.

4. **Versatility**: The SCS400S can handle a diverse range of materials, from hard rocks to ores, making it suitable for various applications in mining, construction, and aggregate production.

V. Power and Weight Specifications

The SCS400S is powered by a motor with a maximum installed power of 315 kw, providing the necessary energy to drive the crushing process effectively. In terms of weight, excluding the motor, the crusher weighs 43 tons. This significant weight contributes to its stability during operation, minimizing vibrations and ensuring accurate and consistent crushing results.

In conclusion, the SCS400S cone crusher combines its advanced cavity design, impressive processing capacities, reliable working principle, and multiple advantages to offer a top-notch solution for material crushing. It is a testament to modern engineering, enabling industries to achieve their production goals with efficiency and precision.
