SCS300S

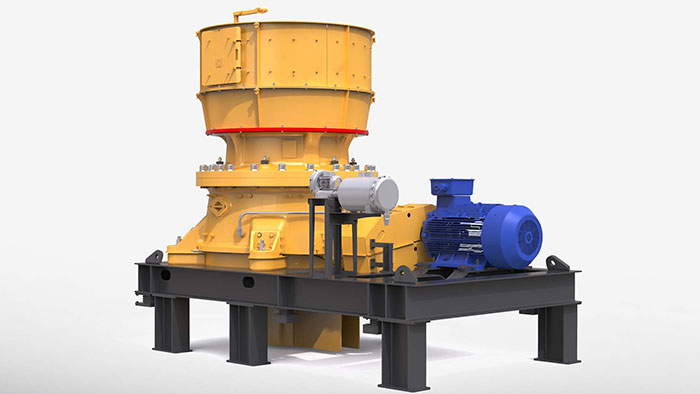

SCS300S Cone Crusher: Key Features and Specifications

The SCS300S cone crusher is a remarkable piece of equipment in the field of material crushing, engineered to meet the diverse demands of various industrial applications. With its advanced design and robust performance, it has become a reliable choice for many professionals.

I. Cavity Types and Their Specifications

This crusher is equipped with three distinct cavity types, namely EC, C, and MC. Each cavity type is carefully crafted with specific parameters that influence its performance and the resulting crushed material characteristics.

The EC cavity comes with a discharge opening range of 450 mm, and its minimum discharge opening size spans from 35 to 51 mm. This setup enables it to handle a significant amount of material with flexibility, allowing for efficient processing of various feedstock sizes while maintaining control over the final output size.

The C cavity, on the other hand, features a discharge opening range of 400 mm and a minimum discharge opening size ranging from 29 to 51 mm. It provides a reliable solution for a wide range of crushing tasks, ensuring consistent performance and quality output in different production scenarios.

The MC cavity is designed with a discharge opening range of 300 mm and a minimum discharge opening size between 35 and 54 mm. This particular cavity type is tailored to achieve specific particle size distributions, making it highly suitable for applications where precise crushing results are crucial.

II. Processing Capacity

The processing capacity of the SCS300S varies depending on the selected cavity type. The EC cavity can manage a processing capacity within the range of 195 to 317 tons per hour. This capacity range makes it well-suited for medium to large-scale production operations, depending on the specific requirements of the job.

The C cavity has a processing capacity ranging from 225 to 333 tons per hour. Its ability to handle materials at this rate allows for efficient utilization in different industrial settings, ensuring a steady flow of crushed materials for further processing or use.

The MC cavity, with a processing capacity between 267 and 456 tons per hour, stands out for its high productivity. It can meet the demands of larger production volumes, enabling industries to achieve their output goals effectively.

III. Power and Weight Specifications

The SCS300S is powered by a motor with a maximum installed power of 250 kw. This power rating provides the necessary energy to drive the crushing process smoothly and efficiently, ensuring that the crusher can handle the materials without any performance issues.

In terms of weight, excluding the motor, the crusher weighs 23 tons. This substantial weight contributes to its stability during operation, reducing vibrations and ensuring accurate and consistent crushing results over extended periods.

In summary, the SCS300S cone crusher combines its diverse cavity types, variable processing capacities, and appropriate power and weight specifications to offer a comprehensive and reliable solution for material crushing in a wide array of industries. It continues to prove its worth in numerous applications, facilitating efficient and high-quality production processes.
