Sand Aggregate IndustryComprehensive Service ProviderSand Aggregate IndustryComprehensive Service ProviderCone Crusher
| Cavity Type | XCP600 (Medium Crushing) | XCP600 (Fine Crushing) | |||
| A | B | A | B | C | |
| Feed Opening (mm) | 500 | 380 | 280 | 150 | 100 |
| Maximum Feed Size (mm) | 420 | 320 | 220 | 125 | 80 |
| Minimum Discharge Opening (mm) | 50 | 45 | 22 | 19 | 12 |
| Maximum Discharge Opening (mm) | 105 | 100 | 35 | 35 | 30 |
| Motor Power (kW) | 355 | 355 | |||
| Main Unit Weight (kg) | 32,700 | 27,000 | |||
| Processing Capacity (t/h) | 300 - 1000 | 245 - 715 | |||
*Note: The processing capacity of the XGP600 cone crusher may vary with different materials and feeding sizes.
Its seen this production line adopts the crusher and other auxiliary equipment with the hourly capacity of over 1000 ton which ensures the large output of the whole production line.
The project is located in China, put into operation in 2019, mainly processing limestone, the design output of 3000t/h, the annual output of 10 million tons, the production of 0-5, 1-2, 1-3 and other specifications of stone, the total investment of the project is 21069191.2240 US dollars.
Xinxiang Zhongyu Dingli CO. Ltd. is a professional mining equipment company with crushing and screening equipment designs many aggregates production line and the relative deduster equipment.

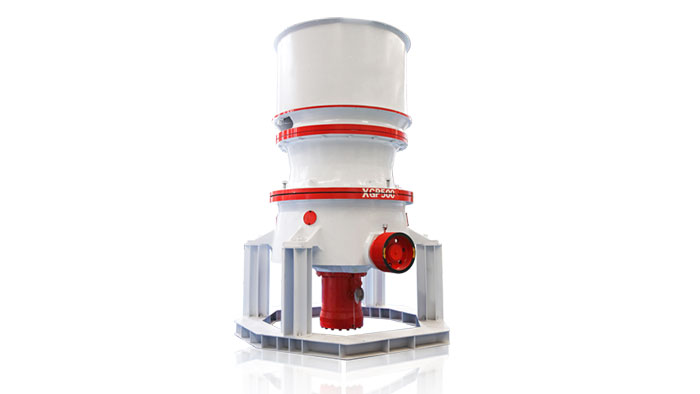

The XGP600 Single Cylinder Hydraulic Cone Crusher holds a significant market position due to its superior performance and reliability. It is widely recognized for its ability to handle extremely large volumes of material, making it an essential piece of equipment for large-scale operations. The XGP600's high capacity and efficiency have made it a preferred choice in industries such as sand and gravel production, mining, and construction materials.
Superior Performance: The XGP600 is designed to deliver exceptional performance in high-demand environments.
High Reliability: Built with high-quality materials and advanced engineering, the XGP600 ensures long-lasting performance and minimal downtime.
Versatile Applications: Suitable for a wide range of industries, from sand and gravel production to mining and construction materials.
