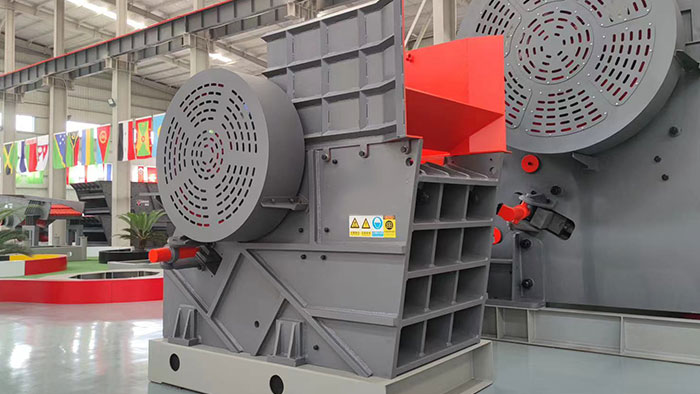

Sand Aggregate IndustryComprehensive Service ProviderSand Aggregate IndustryComprehensive Service ProviderJaw crusher
| model | 6CX80 |
| Feed opening | 800 x 510 mm |
| Max feed size | ≤500 mm |
| CSS Range | 40 - 175 mm |
| Capacity(by hour) | 65 - 380 tph |
| Motor power | 75 kW |
| Weight | 7,520 kg |
| Rotation speed of eccentric shaft | 350 rpm |
*Note: The processing capacity of the 6CX80 jaw crusher may vary with different materials and feeding sizes.
In this installation site we find many small stone crushers are replaced by huge equipment for huge stone production line with about 2000 ton output.
The technician is conducting the commissioning of all the associated equipment which greatly reduces the possibility of failure in the future operation and improve follow-up production efficiency.
Seen from the picture the monitoring system can clearly monitor every corner of the stone production line. It is part of our whole automatic stone production line.
Length of fixed jaw plate ：1100 mm
Maximum repair part weight ：2870kg(without flywheel, movable jaw assembly)
Total weight：7520kg(excluding motor and accessories)
| Closed side setting (mm) | Capacity (t/h) |
|---|---|
| 40 | 65-85 |
| 50 | 80-95 |
| 60 | 95-125 |
| 70 | 115-150 |
| 80 | 130-170 |
| 90 | 150-195 |
| 100 | 165-215 |
| 125 | 210-275 |
| 150 | 250-325 |
| 175 | 290-380 |
