Sand Aggregate IndustryComprehensive Service ProviderSand Aggregate IndustryComprehensive Service ProviderJaw crusher
| model | C116 |
| Feed opening | 1150 x 760 mm |
| Motor power | 132 kW |
| Weight | 21,500 kg |
| Rotation speed of eccentric shaft | 260 rpm |
*Note: The processing capacity of the C116 jaw crusher may vary with different materials and feeding sizes.
Work Process The large limestones are first crushed by primary crusher of PCZ hammer type then the crushed stones are processed by two sets of 3YKZ2470 vibrating screen for classification of materials in various sizes. At last the curshed stone th
The main equipment in 300tph aggregates production line in Liping Kaili Guizhou is PCZ1512 heavy hammer crusher vibrating feeder 3YK1860 upper vibrating screen*2. Though we have less equipment it has high finished materials quality.
The pics show actual site of the production line which adopts fully-closed structure. Since little powder is produced in the process such eco-friendly stone production line has been widely promoted across China.

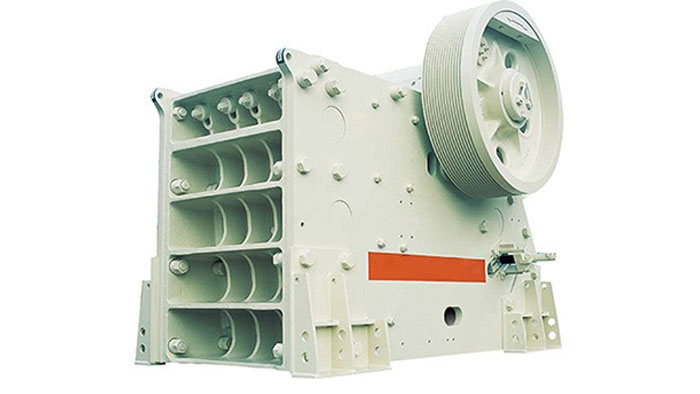

For applications requiring high capacity crushing, the C116 jaw crusher is a top choice with its modular design. Driven by a 132 kW motor, it operates at 260 rpm and weighs 18,600 kg as a standalone unit, functioning at 21,500 kg when operational. The feed opening measures 1150 x 760 mm, capable of handling substantial feed sizes.
Motor Power: 132 kW
Speed: 260 rpm
Weight: 18,600 kg (crusher only); 21,500 kg (operational)
Feed Opening Dimensions: 1150 x 760 mm
The C116 boasts a modular, non-welded frame structure that consists of hot-rolled steel side plates and a high-quality cast steel frame, joined by precision bolts. This design prevents premature wear often seen in welded frames, particularly under impact loads. The swing jaw assembly is constructed from high-grade cast steel and is powered by two large flywheels. A forged eccentric shaft and four large spherical roller bearings ensure dependable operation.
The C116 is designed with environmental considerations in mind. Its efficient motor and optimized design reduce energy consumption, making it a greener option for operations aiming to minimize their carbon footprint. Additionally, its low noise level contributes to a quieter working environment.
