Sand Aggregate IndustryComprehensive Service ProviderSand Aggregate IndustryComprehensive Service ProviderJaw crusher
| model | C150 |
| Feed opening | 1400 x 1200 mm (55” x 47”) |
| Capacity(by hour) | 880 Mtph (970 Stph) |
| Motor power | 200 kW (300 hp) |
| Weight | 50 950 kg (112 330 lbs) |
| Rotation speed of eccentric shaft | 220 rpm |
*Note: The processing capacity of the C150 jaw crusher may vary with different materials and feeding sizes.
Relying on local river pebble resource the customer invests such a 300tph stone crushing line. Our KPC1313 hard rock crusher adopts the rotor with two rows of hammers so it can fully crush the materials. Hydraulic cylinder pulls the the s
As an economical and reasonable stone production line it only requires a few sets of equipment in order to finish the production of final material with high rate of return so there is new customer engaged in stone production.
Xinxiang Zhongyu Dingli CO. Ltd. is a professional mining equipment company with crushing and screening equipment designs many aggregates production line and the relative deduster equipment.

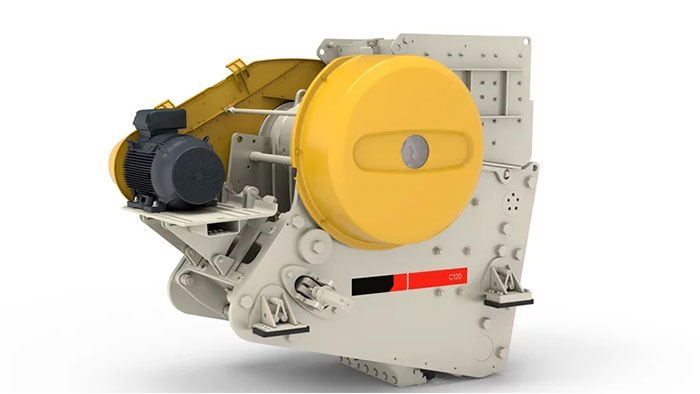

The C150 Jaw Crusher is an effective jaw crusher in the 50-ton (112,000 lbs) weight class. It has been developed for the most demanding large-scale mining and quarrying applications. The crusher’s feed opening with a long, steep crushing cavity allows large coarse feed material up to one meter (40”) in size.
The C150 Jaw Crusher offers outstanding performance in terms of operating lifetime and the ability to crush large feed material to required product sizes at high capacity rates.
An extended feed opening accepts material up to one meter (40”) and breaks it by the increased stroke at the top of the cavity. The tight nip angle in the middle of the cavity ensures that the processed material is quickly passed to the bottom of the cavity where the crusher’s long stroke finishes the job.
Like all C Series Jaw Crushers, the C150 Jaw Crusher is built out of premium components. The main frame structure is based on unique pinned and bolted connections without welded seams.
Fatigue Strength
High Reduction Ratio
Steep Cavity Design
Long and Linear Stroke
Safe to Operate and Maintain
The C150 Jaw Crusher is engineered for safe operation and easy maintenance. There are a limited number of service points, all with easy and safe access. The operation, condition monitoring, and greasing can be fully automated. Lifting tools for components are supplied as standard to make maintenance simpler and safer.
Lifting Tools
Easy to Install and Transport
The modular design enables a wide range of bolt-on options like motor base, feed chute, and composite guards. Multiple installation alternatives from low profile to surface installation either on steel or concrete structures are possible. The C150 Jaw Crusher can be dismantled for transport and then reassembled, which makes it utilizable also at underground sites.
