C6X110

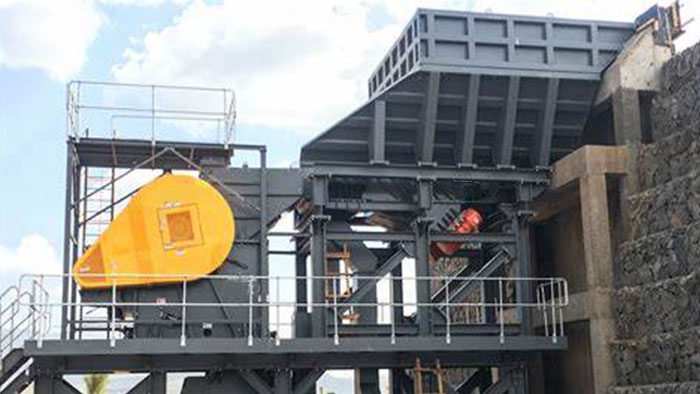

C6X110 Jaw Crusher

The C6X110 jaw crusher refers to a jaw crusher with a feed opening length of 1100mm, capable of producing 160-550 tons per hour. Depending on the discharge opening size, the output varies. When the discharge opening is set to 0-120mm, the hourly output is 160-240 tons; when adjusted to 300mm, the hourly output can reach 550 tons. This model can form a stone crushing line with a capacity of 500 tons per hour when paired with a PF1520 impact crusher and a 3Y3072 vibrating screen.

Technical Parameters:

• Feed Opening Length (mm): 1100
• Feed Opening Width (mm): 850
• Motor Power (Kw): 160
• Speed (rpm): 230
• Discharge Opening Range (mm) & Capacity (t/h):
  • 80 mm: 160-240 t/h
  • 90 mm: 180-260 t/h
  • 100 mm: 200-280 t/h
  • 125 mm: 250-360 t/h
  • 150 mm: 300-430 t/h
  • 175 mm: 340-490 t/h
  • 300 mm: 380-550 t/h

Features:

• Optimized Crushing Chamber: The crushing chamber has been optimized to enhance material throughput and crushing efficiency.
• Modular Frame Design: The frame is designed with detachable side walls and front/rear walls, secured with bolts instead of welding, eliminating stress concentration issues and providing a more compact and reliable structure.
• Double Wedge Adjustment: The wedge block adjustment system allows for easy and safe adjustment of the discharge opening, either mechanically or hydraulically.
• Elastic Limiting Shock Absorption: Elastic limit blocks and rubber shock absorbers effectively absorb peak loads, reducing mutual impact between the crusher and its foundation, enhancing the durability of both.
• Integrated Motor Base: The integrated motor base reduces installation space and ensures stable power transmission.

Applications and Materials: Widely used in metallurgy, mining, chemical, cement, construction, refractory materials, and ceramic industries. Suitable for processing materials with compressive strength up to 300MPa, including hard and strongly abrasive rocks and minerals.
