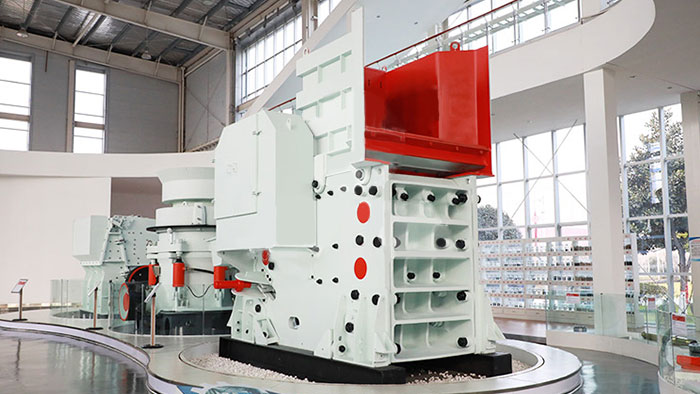

C6X160 Jaw Crusher

The C6X160 jaw crusher refers to a jaw crusher with a feed opening length of 1600mm, capable of producing 420-1100 tons per hour. Depending on the discharge opening size, the output varies. When the discharge opening is set to 470mm, the hourly output is 420-610 tons; when adjusted to 750mm, the hourly output can reach 750-1100 tons.

Technical Parameters:

• Feed Opening Length (mm): 1600
• Feed Opening Width (mm): 1200
• Motor Power (Kw): 250
• Speed (rpm): 220
• Discharge Opening Range (mm) & Capacity (t/h):
  • 470 mm: 420-610 t/h
  • 530 mm: 470-700 t/h
  • 590 mm: 530-790 t/h
  • 650 mm: 590-880 t/h
  • 700 mm: 650-970 t/h
  • 750 mm: 700-1060 t/h

Features:

• Optimized Crushing Chamber: The crushing chamber has been optimized to enhance material throughput and crushing efficiency.
• Modular Frame Design: The frame is designed with detachable side walls and front/rear walls, secured with bolts instead of welding, eliminating stress concentration issues and providing a more compact and reliable structure.
• Double Wedge Adjustment: The wedge block adjustment system allows for easy and safe adjustment of the discharge opening, either mechanically or hydraulically.
• Elastic Limiting Shock Absorption: Elastic limit blocks and rubber shock absorbers effectively absorb peak loads, reducing mutual impact between the crusher and its foundation, enhancing the durability of both.
• Integrated Motor Base: The integrated motor base reduces installation space and ensures stable power transmission.

Applications and Materials: Suitable for applications in metallurgy, mining, chemicals, cement, construction, refractories, and ceramics. Capable of processing materials with compressive strengths up to 300MPa, including hard and strongly abrasive rocks and minerals.
