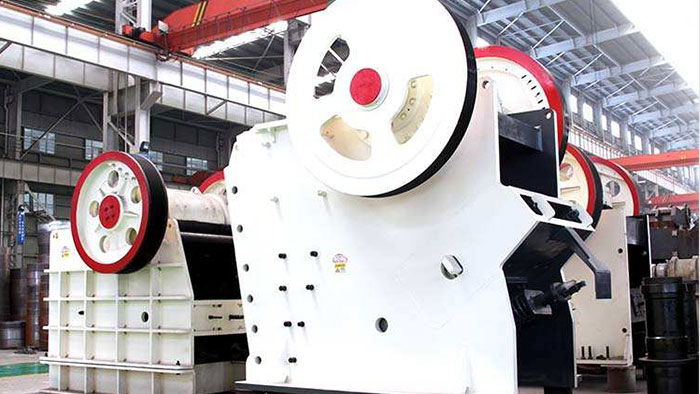

C6X200 Jaw Crusher

The C6X200 jaw crusher refers to a jaw crusher with a feed opening length of 2000mm, capable of producing 620-1500 tons per hour. Depending on the discharge opening size, the output varies. When the discharge opening is set to 690mm, the hourly output is 620-890 tons; when adjusted to 1000mm, the hourly output can reach 1000-1500 tons.

Technical Parameters:

• Feed Opening Length (mm): 2000
• Feed Opening Width (mm): 1500
• Motor Power (Kw): 400
• Speed (rpm): 200
• Discharge Opening Range (mm) & Capacity (t/h):
  • 690 mm: 620-890 t/h
  • 770 mm: 690-1000 t/h
  • 850 mm: 770-1100 t/h
  • 930 mm: 850-1200 t/h
  • 1000 mm: 930-1300 t/h
  • 1000 mm: 1000-1500 t/h

Features:

• Optimized Crushing Chamber: The crushing chamber has been optimized to enhance material throughput and crushing efficiency.
• Modular Frame Design: The frame is designed with detachable side walls and front/rear walls, secured with bolts instead of welding, eliminating stress concentration issues and providing a more compact and reliable structure.
• Double Wedge Adjustment: The wedge block adjustment system allows for easy and safe adjustment of the discharge opening, either mechanically or hydraulically.
• Elastic Limiting Shock Absorption: Elastic limit blocks and rubber shock absorbers effectively absorb peak loads, reducing mutual impact between the crusher and its foundation, enhancing the durability of both.
• Integrated Motor Base: The integrated motor base reduces installation space and ensures stable power transmission.

Applications and Materials: Widely used in industries such as metallurgy, mining, chemicals, cement, construction, refractories, and ceramics. Suitable for processing materials with compressive strengths up to 300MPa, including hard and strongly abrasive rocks and minerals.
