| model | CGE-200 |
| Feed opening | 630 x 910 mm |
| Max feed size | 500 mm |
| CSS Range | 65 - 195 mm |
| Capacity(by hour) | 125 - 290 t/h |
| Motor power | 90 kW |
| Dimensions | 2840 x 1960 x 2640 mm |
| Weight | 15,500 Kg |
*Note: The processing capacity of the CGE-200 jaw crusher may vary with different materials and feeding sizes.

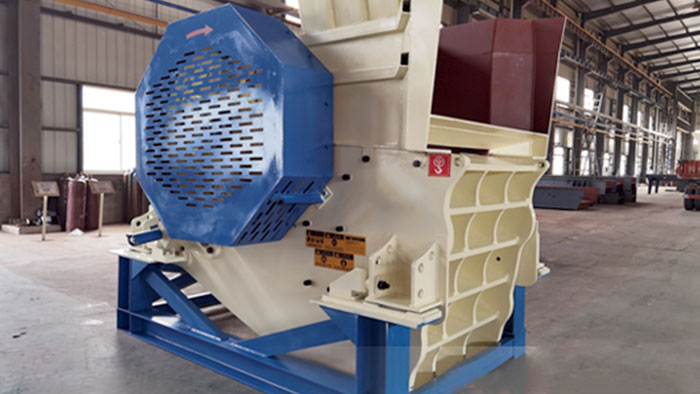

After conducting measure for many times we have designed a reasonable and compact production line; besides we reduced customers’ costs and ensured their output by replacing traditional jaw crusher and impact crusher with hammer crusher.
All the equipment has been equipped with dust-proof facility and observation device so as to timely observe the abnormal situation and make adjustment.
Work Process The large rocks are fed by the vibrating feeder into PCZ1512 heavy hammer crusher in a uniform manner. The crushed stones are then conveyed by the conveyor to 2YKZ2460 vibrating screen for classifying the stone materials in various sizes

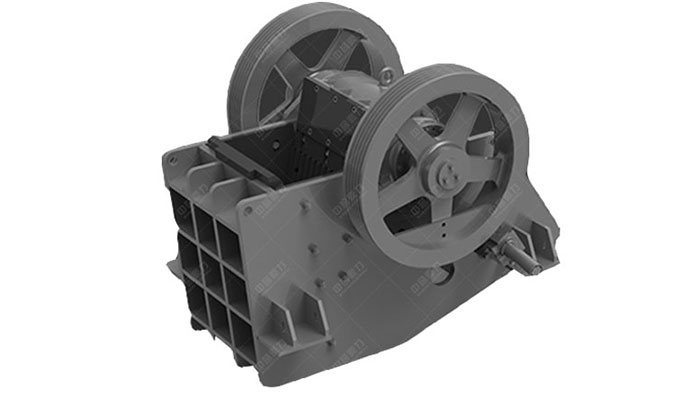

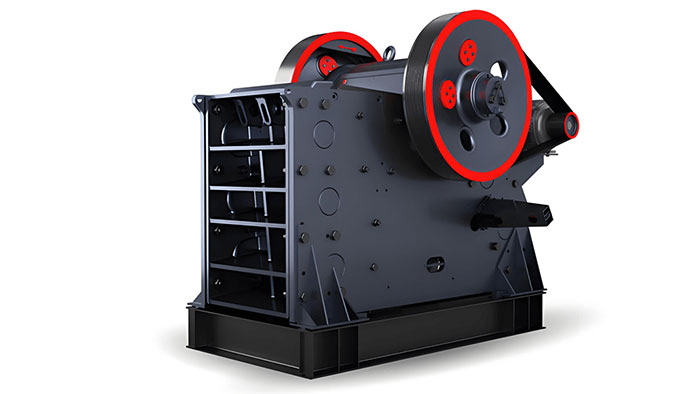

The CGE-200 Jaw Crusher is a mid-range model in the CGE Series Smart Jaw Crushers, designed for primary crushing in medium-sized mines and quarries. This crusher can handle feed sizes up to 500 mm and is suitable for processing various hardnesses of stone and rock with compressive strength not exceeding 350 MPa.
The CGE-200 Jaw Crusher has a production capacity of 125 to 290 tons per hour and is equipped with a 90 kW motor, ensuring efficient and stable operation. Its unique deep-cavity design allows for a larger processing volume compared to conventional jaw crushers. The frame is constructed using a dovetail welding technique, providing higher strength and durability compared to monolithic cast frames.
In addition, the CGE-200 Jaw Crusher features several intelligent functions, such as real-time monitoring of fixed and movable jaw plate thickness, automatic detection and adjustment of discharge opening size, and intelligent control of feed rate. These features not only enhance production efficiency but also significantly extend the service life of the equipment.
For maintenance, the rear of the frame is equipped with a hydraulic cylinder for easy inspection and hydraulic adjustment of the discharge opening, ensuring the equipment remains in optimal working condition.
Overall, the CGE-200 Jaw Crusher stands out for its efficient energy use, intelligent control, and reliable performance, making it an ideal choice for primary crushing in medium-sized operations.
