Sand Aggregate IndustryComprehensive Service ProviderSand Aggregate IndustryComprehensive Service ProviderJaw crusher
| model | CJ549 |
| Feed opening | 950 x 1250 mm |
| CSS Range | 110 - 250 mm |
| Capacity(by hour) | 260 - 810 tph |
| Motor power | 160 - 200 kW |
*Note: The processing capacity of the CJ549 jaw crusher may vary with different materials and feeding sizes.
It’s seen from the picture the vehicles are transporting the finished materials away from the site. All the roads of the mining area have been hardened so as to protect the production environment.
Equipment configuration: PCZ1615 heavy hammer crusher ZG1538 vibrating feeder 3YKZ1670 vibrating screen. Performance feature: as one of the major market of Xinxiang Dingli Jiangxi spreads over our customers production sites.
EPC general contract construction, production of washed-sand, concrete and other building materials, but also installed the Zhongyu Dingli intelligent mine management system, to achieve more convenient production line management and operation.

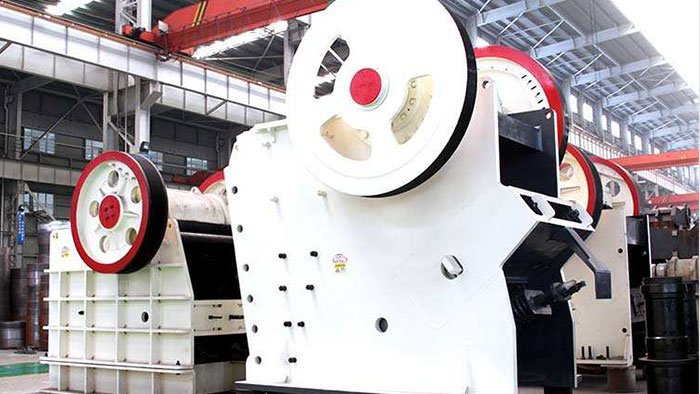

The CJ549 Jaw Crusher features a feed opening of 950 x 1250 mm, discharge range of 110 - 250 mm, and a capacity of 260 - 810 tons per hour, powered by a 160 - 200 kW motor. The CJ549 Jaw Crusher stands out with its outstanding performance and reliability, making it ideal for use in mining, smelting, building materials, and related fields.
The CJ549 Jaw Crusher uses a large-radius transition fillet and low-stress welding method, effectively reducing stress concentration and ensuring equal strength in all directions, providing good impact resistance, uniform stress distribution, and lower failure rates.
The CJ549 Jaw Crusher is equipped with heavy-duty guard plates above the moving jaw, which effectively protects the moving jaw body and its internal bearings from damage. The integral cast steel bearing seat structure ensures perfect alignment with the frame, avoiding unnecessary radial loads that might be caused by composite bearing seats, thus ensuring smoother bearing operation. The integrated motor installation not only saves space but also simplifies belt adjustment, extending their lifespan.
