Sand Aggregate IndustryComprehensive Service ProviderSand Aggregate IndustryComprehensive Service ProviderJaw crusher
| model | CJ5155 |
| Feed opening | 1170 x 1400 mm |
| CSS Range | 225 - 350 mm |
| Capacity(by hour) | 600 - 1100 tph |
| Motor power | 160 - 200 kW |
*Note: The processing capacity of the CJ5155 jaw crusher may vary with different materials and feeding sizes.
Seen from the pics the whole stone crushing line adopts fully-closed mode. Compared with previously open-pit operation it is more eco-friendly. The feed silo production process and discharge silo are also enclosed by the closing plate to
DLPCZ1820 heavy hammer breaking and DLPC1220 shaping hammer crusher, after putting into operation, can produce 800-1500 tons of stone per hour, finished stone particle shape uniform, good particle shape.
This production line added water to reduce powder pollution and have a green production environment.

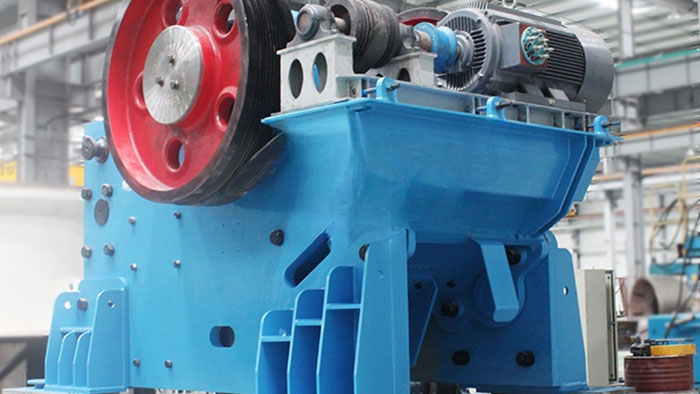

The CJ5155 Jaw Crusher features a feed opening of 1170 x 1400 mm, discharge range of 225 - 350 mm, and a capacity of 600 - 1100 tons per hour, powered by a 160 - 200 kW motor. The CJ5155 Jaw Crusher stands out with its outstanding performance and reliability, making it ideal for use in mining, smelting, building materials, and related fields.
The CJ5155 Jaw Crusher uses a large-radius transition fillet and low-stress welding method, effectively reducing stress concentration and ensuring equal strength in all directions, providing good impact resistance, uniform stress distribution, and lower failure rates.
The CJ5155 Jaw Crusher is equipped with heavy-duty guard plates above the moving jaw, which effectively protects the moving jaw body and its internal bearings from damage. The integral cast steel bearing seat structure ensures perfect alignment with the frame, avoiding unnecessary radial loads that might be caused by composite bearing seats, thus ensuring smoother bearing operation. The integrated motor installation not only saves space but also simplifies belt adjustment, extending their lifespan.
