| model | CPEX-250 x 1000 |
| Feed opening | 250 x 1000 mm |
| Max feed size | 210 mm |
| CSS Range | 25 - 60 mm |
| Capacity(by hour) | 16 - 52 t/h |
| Motor power | 30 kW |
| Weight | 6,500 Kg |
| Rotation speed of eccentric shaft | 330 r/min |
*Note: The processing capacity of the CPEX-250 x 1000 jaw crusher may vary with different materials and feeding sizes.
Nominal capacity15 - 50 tph
Max. feed size220 mm
Motor power30 kW
Live Chat
Nominal capacity13 - 35 t/h
Max. feed size210 mm
Motor power22 kW
Live Chat
Nominal capacity20 - 50 tph
Max. feed size210 mm
Motor power30 - 37 kW
Live Chat
From this site we get to know this production line builds with mountain that can make fully use of limestone. All the machines are installed and provided by Xinxiang Dingli with high matching.
Featured by low investment and fast recovery of cost this production line can produce cubic stone with sound compression resistance far beyond customer expectation so it is warmly welcomed by the old and new customers.
With the centralized electrical control the whole gravel aggregates production line can be operated in a centralized manner reducing the trouble to operate every device.

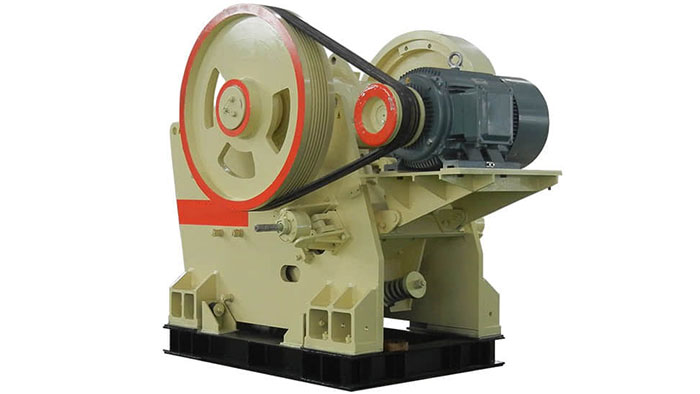

The CPEX-250 x 1000 Jaw Crusher is an advanced and durable model in the CPE Series Smart Jaw Crushers, designed for primary crushing in medium to large-sized operations. This crusher can handle feed sizes up to 210 mm and is suitable for processing various hardnesses of stone and rock with compressive strength not exceeding 320 MPa.
The CPEX-250 x 1000 Jaw Crusher has a production capacity of 16 to 52 tons per hour and is equipped with a 30 kW motor, ensuring efficient and stable operation. Its deep-cavity design maximizes the processing volume, and the frame is constructed using robust materials, providing higher strength and durability.
In addition, the CPEX-250 x 1000 Jaw Crusher features several intelligent functions, such as real-time monitoring of fixed and movable jaw plate thickness, automatic detection and adjustment of discharge opening size, and intelligent control of feed rate. These features enhance production efficiency and extend the service life of the equipment.
For maintenance, the rear of the frame is equipped with a hydraulic cylinder for easy inspection and hydraulic adjustment of the discharge opening, ensuring the equipment remains in optimal working condition. The crusher weighs 6500 kg, making it a robust solution for medium to large-sized operations.
Overall, the CPEX-250 x 1000 Jaw Crusher stands out for its efficient energy use, intelligent control, and reliable performance, making it an ideal choice for primary crushing in medium to large-sized operations.
