Sand Aggregate IndustryComprehensive Service ProviderSand Aggregate IndustryComprehensive Service ProviderJaw Crusher
| model | CPEX-300 x 1300 |
| Feed opening | 300 x 1300 mm |
| Max feed size | 250 mm |
| CSS Range | 20 - 90 mm |
| Capacity(by hour) | 20 - 104 t/h |
| Motor power | 75 kW |
| Weight | 11,000 Kg |
| Rotation speed of eccentric shaft | 300 r/min |
*Note: The processing capacity of the CPEX-300 x 1300 jaw crusher may vary with different materials and feeding sizes.
Nominal capacity40 - 100 tph
Max. feed size250 mm
Motor power75 kW
Live Chat
Nominal capacity13 - 35 t/h
Max. feed size210 mm
Motor power22 kW
Live Chat
Nominal capacity16 - 52 t/h
Max. feed size210 mm
Motor power30 kW
Live Chat
The coal gangue sand production line can process coal gangue into sand aggregate, which can not only solve environmental pollution, but also make up for the shortage of sand aggregate resources. It is an economic and environmental protection resource utilization mode, which meets the strategic requirements of green sustainable development.
This 600t/h production line has the basic configuration of PCZ1615 heavy hammer crusher PC1213 hammer crusher ZG1538 feeder 3YKZ2670 vibrating screen*2 sets 2YKZ2670 vibrating screen*2 sets.
The aggregates production line of Huaibei totally meets Anhui actual situation of huge limestone resources. The heavy hammer crusher is adopted to take place traditional jaw crusher and impact crusher.

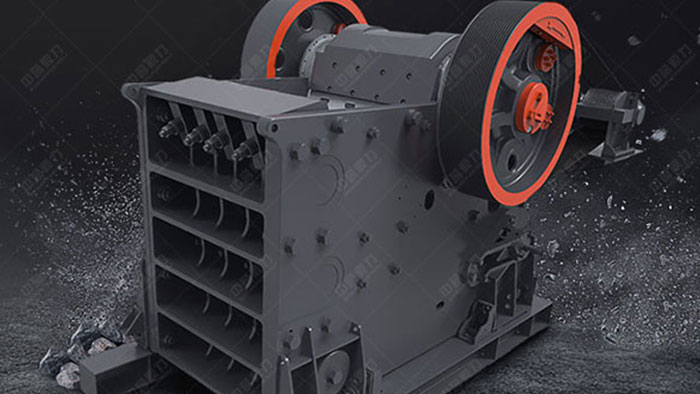

The CPEX-300 x 1300 Jaw Crusher is an enhanced performance model in the CPE Series Smart Jaw Crushers, designed for primary crushing in large operations. This crusher can handle feed sizes up to 250 mm and is suitable for processing various hardnesses of stone and rock with compressive strength not exceeding 320 MPa.
The CPEX-300 x 1300 Jaw Crusher has a production capacity of 20 to 104 tons per hour and is equipped with a 75 kW motor, ensuring efficient and stable operation. Its deep-cavity design maximizes the processing volume, and the frame is constructed using robust materials, providing higher strength and durability.
In addition, the CPEX-300 x 1300 Jaw Crusher features several intelligent functions, such as real-time monitoring of fixed and movable jaw plate thickness, automatic detection and adjustment of discharge opening size, and intelligent control of feed rate. These features enhance production efficiency and extend the service life of the equipment.
For maintenance, the rear of the frame is equipped with a hydraulic cylinder for easy inspection and hydraulic adjustment of the discharge opening, ensuring the equipment remains in optimal working condition. The crusher weighs 11000 kg, making it a robust solution for large operations.
Overall, the CPEX-300 x 1300 Jaw Crusher stands out for its efficient energy use, intelligent control, and reliable performance, making it an ideal choice for primary crushing in large operations.
