Sand Aggregate IndustryComprehensive Service ProviderSand Aggregate IndustryComprehensive Service ProviderJaw Crusher
| model | GC100 |
| Feed opening | 1000 x 760 mm |
| CSS Range | 80 - 200 mm |
| Capacity(by hour) | 170 - 545 tph |
| Motor power | 110 kW |
| Weight | 20.06 t |
| Rotation speed of eccentric shaft | 260 rpm |
*Note: The processing capacity of the GC100 jaw crusher may vary with different materials and feeding sizes.
The use of Zhongyu Dingli EPCO general contracting, more worry, Zhongyu Dingli has a full set of sand and stone processing equipment, as well as design institute design production line, mapping, civil engineering, installation, operation, after-sales and so on are very professional.
2500 Ton/Day Gravel Aggregate Production Process Configuration List Equipment Model Unit(s) Vibrating Feeder ZG1038 1 Heavy Hammer Crusher PCZ1510 1 Hammer Crusher XPC0808 1 Vibrating Screen 2YKQ2060 2 The bulk limestone is evenly fed into
It’s seen the gravel aggregate production line has large scale which can meet the customer requirement for large capacity. The dust collectors will be configured later for environment protection.

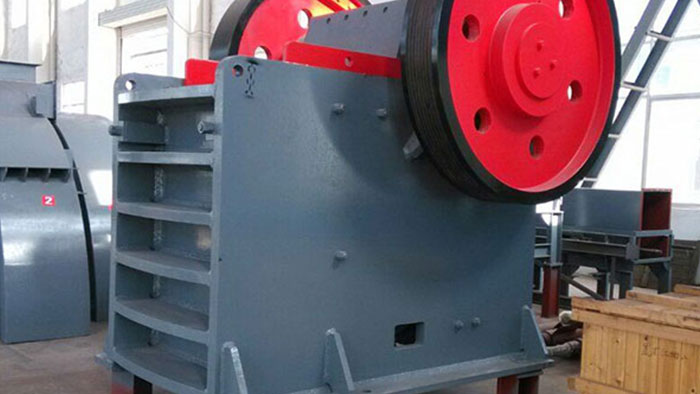

The GC100 European Type Jaw Crusher is a high-output crushing equipment suitable for various materials such as river pebbles, granite, basalt, iron ore, limestone, quartz, coal gangue, and construction waste. This crusher incorporates advanced technologies from Metso's C series and Sandvik's JM(CJ) series jaw crushers, combined with domestic practicalities, using advanced computer technology to ensure outstanding performance and reliability.
The GC100 European Type Jaw Crusher has a 30% higher output compared to traditional PE jaw crushers, thanks to its advanced mainframe vibration reduction system, which ensures smoother operation and lower noise levels. It has a feed size of 1000 x 760mm, a speed of 260rpm, and a power of 110kW. The output at different closed-side settings (CSS) is as follows: 80mm (170 - 225t/h), 100mm (215 - 280t/h), 125mm (265 - 345t/h), 150mm (315 - 410t/h), 175mm (370 - 480t/h), 200mm (420 - 545t/h). The weight of the unit is 20.06 tons.
The GC100 European Type Jaw Crusher has excellent structural motion characteristics, significantly improving the service life of the jaw plates, extending to around 220 hours. This design not only increases production efficiency but also reduces the frequency of jaw plate replacements, saving production costs.
